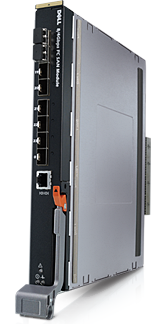

Dell 8/4 Gbps FC Pass-Through Module
Dell 8/4 Gbps FC Pass-Through Module for M1000e Blade Enclosure

Dell 8/4 Gbps FC Pass-Through Module

Dell Networking Products
Fibre Channel Blade Switches
Dell 8/4 Gbps FC Pass-Through Module
Call for Pricing!

Click here to jump to more pricing!

Overview:

Connect M-Series blades into the Fibre Channel (FC) infrastructure of your choice.

  • Provides Fibre Channel connectivity for Dell™ blades
  • Auto-negotiates link speeds of 8/4/2 Gbps
  • Features 16 external ports with optical 8 Gbps small form-factor pluggable + (SFP+) transceivers

Fibre Channel connectivity for your existing SAN infrastructure

The Dell™ 8/4 Gbps FC Pass-Through Module provides data centers with existing storage area network (SAN) infrastructures a direct Fibre Channel connection between the servers and the SAN. The module offers sixteen 8/4/2 Gbps Fibre Channel one-to-one, non-switched connections between the blade servers and the SAN.

Highlights

  • Each port provides a dedicated connection for guaranteed bandwidth to each server port.
  • Transparent pass-through protocol helps remove interoperability issues between SAN and server.
  • 8, 4 or 2 Gbps Fibre Channel connectivity on each port can match existing server and SAN installations.

Alternative Fibre Channel connectivity option for Dell M-Series blades

Are you looking for the simplicity of a pass-through with the added port/cable aggregation and failover benefits of a switch? Dell 8/4 Gbps FC SAN Module, based on industry-standard N_Port ID Virtualization (NPIV) technology.

Transform your Dell M1000e blade server enclosure

Fibre Channel Blade Switches:

Dell Networking Products
Fibre Channel Blade Switches
Dell 8/4 Gbps FC Pass-Through Module

Dell 8/4 Gbps FC Pass-Through Module
8/4Gbps Fibre Channel Pass-Through Module for M1000e Blade Enclosure

Dell 8/4Gbps FC SAN Module

Dell 8/4Gbps FC SAN Module
Simplified Fibre Channel connectivity for your PowerEdge M1000e blade enclosure

Brocade M6505 Fibre Channel Switch

Brocade M6505 Fibre Channel Switch
Add 16 Gbps Fibre Channel connectivity across servers, storage and SAN as needed, without increasing your data center footprint.

Brocade M5424 Blade Switch

Brocade M5424 Blade Switch
Easy integration of Fibre Channel technology into new or existing SAN environments using the PowerEdge™ M1000e blade enclosure, Brocade® M5424 and Dell™ Compellent™ storage.

Specifications:

Fibre Channel ports

  • 32 total Fibre Channel ports. 16 internal (server) ports and 16 external (SAN) ports
  • Internal and external port pairs are dedicated static connections providing full isolated bandwidth between server blades and the SAN
  • 16 shortwave optical SFP+ modules are pre-installed in the 16 external (SAN) ports
  • All external ports are hot-pluggable

Connectivity

  • Dell 8/4 Gbps FC Pass-Through Module is transparent to all Fibre Channel topologies
  • Connects to any industry standard Fibre Channel compliant Storage Area Network or device
  • Port speeds operate independently at 8, 4, or 2 Gbps
  • Auto-sensing of 8, 4 and 2 Gbps port speeds
  • Speed matching to highest common 8, 4 and 2 Gbps speeds

Performance

  • 8.5Gbps line speed, full duplex
  • 4.25 Gbps line speed, full duplex
  • 2.125 Gbps line speed, full duplex

Total throughput

  • 256 Gbps throughput, full duplex (16 connections x 8Gbps x 2 (bi-directional)

Interoperability

  • Cisco and Brocade FC Switch Fabrics
  • Emulex and Qlogic HBA's
  • Dell / EMC storage arrays and tape libraries

Architecture

  • Dell 8/4 Gbps FC Pass-Through Module units are hot pluggable into the M1000e chassis
  • Redundant units provide failover protection
  • Up to four Pass-Through Modules may plug into Fabrics B and C I/O bays of the M1000e chassis

Options

  • None, device is fully enabled and populated
  • Replacement short wave SFP+ modules are available and separately orderable

Management

  • None, device is fully enabled and populated
  • Device status is available through the M1000e Chassis Management Controller (CMC)

Diagnostics

  • Dell 8/4 FC Pass-Through Module performs a power on self-test and various ongoing diagnostics to ensure proper operation

Chassis

  • Dimensions: Single-wide I/O Module for M1000e (Width: 272.75 mm, Height: 32.48 mm, Depth: 307.24 mm)
  • Weight: 2.6 kg without SFP's; 3.0 kg with SFP's

Environmental Operating Conditions

  • Temperature Operating: 0˚C to 40˚C (32˚F to 104˚F)
  • Temperature Non-operating: -20˚C to 70˚C (-4˚F to 158˚F)
  • Humidity Operating: 10% to 90%, non-condensing at 29˚C
  • Humidity Non-operating: 5% to 95%, non-condensing at 38˚C
  • Altitude Operating: Up to 3,048 m (10,000 ft)
  • Altitude Non-operating: Up to 10.668 km (35,000 ft)
  • Shock Operating: 20G for 6ms
  • Shock Non-operating: 50G with a velocity change of 4216 mm/sec
  • Vibration Operating: 0.4G at 5 Hz to 500 Hz for 60 minutes
  • Non-operating: 0.5G at 2 Hz to 200 Hz for 15 minutes; 1.04 gms random for 15 minutes

Power

  • DC Input:
    • 12V from shared power supplies in M1000e blade chassis
  • Power Consumption:
    • 45 Watts Max
