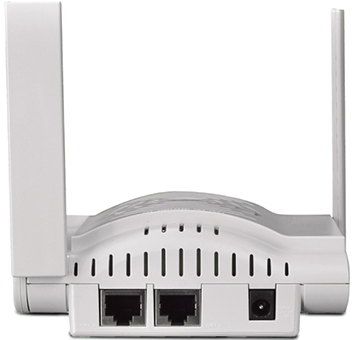

Dell PowerConnect W-AP124 and W-AP125 Access Points
Secure Access Points for Your Wireless Network

Dell PowerConnect W-AP124 and W-AP125 Access Points

Sorry, this product is no longer available, Please, contact us for a replacement product!

Overview:

The multifunction Dell PowerConnect W-AP124 and W-AP125 are high performing indoor dual-radio 802.11n access points (APs) designed for maximum deployment flexibility in high-density environments that require above-ceiling or enclosure-based installations. These high-speed APs deliver wire-like performance at data rates up to 300 Mbps per radio.

The W-AP124 features two 3x3 MIMO dual-band 2.4-GHz/5- GHz radios has the interface to connect external antennas while the W-AP125 features the same radios with integrated internal antennas. Both are built to provide years of trouble-free operation and are backed by an Extended Lifetime Warranty.

Working with Dell’s line of centralized PowerConnect W Series Controllers, the W-AP124 and W-AP125 delivers secure, high-speed wireless network services for user mobility that works seamlessly within enterprise, branch office and campus network deployments.

802.11n enables the use of wireless as a primary connection with speed and reliability comparable to a wired LAN. It also increases performance by utilizing techniques such as channel bonding, block acknowledgement and MIMO radios. Advanced antenna technology also increases range and reliability.

Key to ensuring wire-like performance and reliability is the W-Series Adaptive Radio Management (ARM), which manages the 2.4-GHz and 5-GHz radio bands to deliver maximum client performance. Adaptive Radio Management enables different 802.11 a, b,g and n wireless clients to operate on the same network at maximum possible performance through the use of band steering, airtime fairness policies between clients, and by managing channel interference that may occur between access points.

The multifunction W-AP124 and W-AP125 can be configured through the controller to provide WLAN access with part-time air monitoring, dedicated air monitoring for wireless IPS, Remote AP (RAP) functionality or secure enterprise mesh. The W-AP124 and W-AP125 feature dual 100/1000BASE-T Ethernet interfaces and operate from standard power-over-Ethernet (PoE) sources or a 5-volt DC power supply.

PowerConnect W-Series Access Points:


Dell Networking Products
Dell W-Series Access Points
PowerConnect W-AP134/135 Access Points PowerConnect W-AP134/135 Access Points
PowerConnect W-AP134 (external antenna) and W-AP135 (internal antenna) are enterprise-grade, high-performance dual-radio 802.11n indoor access points that deliver wireline-like data rates of up to 450Mbps per radio, 900Mbps total.
PowerConnect W-AP104/105 Access Points PowerConnect W-AP104/105 Access Points
PowerConnect W-AP104 (external antenna) and W-AP105 (internal antenna) are mainstream enterprise-grade dual-radio 802.11n indoor access points designed to deliver data rates of up to 300Mbps per radio, 600Mbps total.
PowerConnect W-AP175 Outdoor Access Points PowerConnect W-AP175 Outdoor Access Points
PowerConnect W-AP175 family is enterprise-grade, mainstream dual-radio 802.11n outdoor access points that deliver data rates of up to 300Mbps per radio, 600Mbps total. Ideal for campuses, industrial parks and other outdoor harsh open-air environments, PowerConnect W-AP175 access point can be powered via PoE, AC or DC power sources, and comes with convenient wall and mast mounting options and solar shield.
PowerConnect W-AP92/93 Access Points PowerConnect W-AP92/93 Access Points
PowerConnect W-AP92 (external antenna) and W-AP93 (internal antenna) are entry-level, enterprise-grade, single-radio 802.11n indoor access points designed to deliver data rates of up to 300Mbps.
PowerConnect W-AP93H Wired + Wireless Access Point PowerConnect W-AP93H Wired + Wireless Access Point
PowerConnect W-AP93H is a special-purpose 802.11n indoor access points with built-in 4-port fast Ethernet switch designed to deliver wireless data rates of up to 300Mbps. PowerConnect W-AP93H is specifically designed to be mounted over a network wall socket.
PowerConnect W-AP124/125 Access Points PowerConnect W-AP124/125 Access Points
PowerConnect W-AP124 (external antenna) and W-AP125 (internal antenna) are suitable for above-ceiling or enclosure-based installations. They offer dual-radio 802.11n with data rates up to 300Mbps per radio.
PowerConnect W-AP68 Access Point PowerConnect W-AP68 Access Point
PowerConnect W-AP68 is designed to deliver data rates of up to 150Mbps for organizations that are looking for a basic enterprise-grade 802.11n

Legend: S —Standard AO — Available Optional N — Not Available

PowerConnect W-Series Access Points Comparision Specs
Performance W AP68 W AP92/93 W AP93H W AP105 W AP124/ 125 W AP134/ 135 W AP175
WiFi certified 802.11a/b/g/n S S S S S S S
Multiservice concurrent 802.11a/n + b/g/n WLAN S S S S S S S
Entry-level indoor 802.11n single-radio, single-band (2.4GHz) AP S S N N S N N
Affordable indoor 802.11n dual-radio, dual-band AP for high-density deployments N N N S N N N
Indoor wired and 802.11n single-radio, dual-band AP with four-port Ethernet switch N N S N N N N
Chassis W AP68 W AP92/93 W AP93H W AP105 W AP124/ 125 W AP134/ 135 W AP175
10/100/1000 BASE-T Ethernet (RJ-45), autosensing link speed and MDI/MDX 1x 1x 4x 1x 2x 2x 1x
USB console interface N N N N N N 1x
1 x passive RJ 45 pass-through interface 1x 1x 1x 1x 1x 1x 1x
Single Radio - 2.4 or 5GHz band S S S N N N N
Dual Radios - Simultaneous operation in either 2.4GHz or 5GHz band. N N S S S S S
Operating Frequencies: 2.4–2.5GHz, 5.150–5.950GHz S S S S S S S
Power W AP68 W AP92/93 W AP93H W AP105 W AP124/ 125 W AP134/ 135 W AP175
Power interfaces 12 V, 1.25 A 12 V, 1.25 A 12 V, 1.25 A 12 V, 1.25 A 5 V, 3.2 A 12 V, 1.25 A 12–48V DC or 100–240V AC
Power consumption 8W 10W 9W 12.5W 16W 15W 18W
Environmental W AP68 W AP92/93 W AP93H W AP105 W AP124/ 125 W AP134/ 135 W AP175
Operating temperature: 0° C to +50° C (+32° F to +122° F) S S S S S S -40°C to +55°C
(-40°F to +131°F)
Dimensions 140 mm x 105 mm x 38 mm (5.5” x 4.1” x1.5”) 120 mm x 130 mm x 35 mm (4.7" x 5.1" x 1.4") 130 mm x 143 mm x 35 mm (5.1" x 5.6" x 1.4") 132 mm x 135 mm x 45 mm (5.2" x 5.3" x 1.8") 124 mm x 130 mm x 51 mm (4.9" x 5.13" x 2.0") 170 mm x 170 mm x 45 mm (6.69" x 6.69" x 1.77") 260 mm x 240 mm x 105 mm (10.2” x 9.4” x4.1”)
Weight 145 g (5.1 oz) 375 g (13.2 oz) 760 g (1.68 lb) 0.3 kg (10.56 oz) 0.42 kg (15 oz) 760 g (1.68 lbs) 3.25 kg (7 lb)
Warranty W AP68 W AP92/93 W AP93H W AP105 W AP124/ 125 W AP134/ 135 W AP175
Extended Lifetime Warranty S S S S S S S

Specifications:

Dell PowerConnect W-AP124 and W-AP125 Access Points Specifications

Operating modes

  • Multiservice concurrent 802.11a/n + b/g/n WLAN
  • Can be configured to operate individually or simultaneously as:
    - 802.11a/b/g/n access point
    - Air monitor, spectrum monitor
    - Remote AP
    - Secure enterprise mesh
  • Backward compatible with 802.11a/b/g and mixed-mode 11a/b/g/n deployments

Radios

  • Multifunction, dual radio capable of 2.4-GHz and 5-GHz operation
  • Both 802.11n radios implement 3x3 MIMO with two spatial streams, providing up to 300 Mbps data rate per radio
  • Maximal ratio combining (MRC) for improved receiver performance

Wireless radio specifications

  • AP type: Indoor, dual radio, dual band
  • Supported frequency bands (country-specific restrictions apply):
    - 2.400 to 2.4835 GHz
    - 5.150 to 5.250 GHz with Dynamic Frequency Selection
    (DFS) capability
    - 5.250 to 5.350 GHz with Dynamic Frequency Selection
    (DFS) capability
    - 5.470 to 5.725 GHz with Dynamic Frequency Selection
    (DFS) capability
    - 5.725 to 5.850 GHz with Dynamic Frequency Selection
    (DFS) capability
  • Available channels: Controller-managed, dependent upon configured regulatory domain
  • Maximum transmit power:
    - 2.4 GHz: Up to 23 dBm (limited by local regulatory requirements)
    - 5 GHz: Up to 22 dBm (limited by local regulatory requirements)
    - Transmit power: Configurable in increments of 0.5 dBm
  • Supported radio technologies:
    - 802.11b: Direct-sequence spread-spectrum (DSSS)
    - 802.11a/g/n: Orthogonal frequency division multiplexing (OFDM)
    - 802.11n: 3x3 MIMO with 2 spatial streams
  • Supported modulation types:
    - 802.11b: BPSK, QPSK, CCK
    - 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
  • Association rates (Mbps):
    - 802.11b: 1, 2, 5.5, 11
    - 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
    - 802.11n: MCS0 - MCS15 (6.5 Mbps to 300 Mbps)
    - 802.11n high-throughput (HT) support: HT 20/40
    - 802.11n packet aggregation: A-MPDU, A-MSDU

Antenna

  • W-AP124: Three RP-SMA interfaces for external antenna support (supports up to 3x3 MIMO with spatial diversity). External Antenna selection guide is available from Dell representative or downloadable from Dell.com/wireless
  • W-AP125: Integrated, tri, omni-directional multiband dipole antennas (supports up to 3x3 MIMO with spatial diversity)
  • W-AP125 antenna maximum gain:
    - 2.4 GHz to 2.5 GHz/3.2 dBi
    - 5.150 GHz to 5.875 GHz/5.2 dBi

Interfaces

  • Network:
    - 1 x 10/100/1000Base-T Ethernet (RJ45), auto-sensing, MDI/MDX
  • Power:
    - 1 x DC power connector
  • Other:
    - 1 x RJ45 console interface

Power options

  • 48V DC 802.3af PoE or 802.3at or PoE+
  • External AC power adapter providing 5V DC to AP (adapter sold separately)
  • Maximum power consumption: 16 watts

Mounting

  • Ceiling tile rail (15/16” & 9/16” recessed or non-recessed)
  • Desk stand & wall outlet mount plate
  • Solid wall stand-off
  • Kensington security lock point (model W-AP125 only)

Mechanical

  • 124 mm x 130 mm x 51 mm (4.9” x 5.13” x 2.0“)
  • Weight: 420 g (15 oz)

Environmental

  • Operating:
    - Temp: 0° to 50° C (32° to 122° F)
    - Humidity: 5 to 95% non-condensing
  • Storage and Transportation:
    - Temp: -40° to 70° C (-40° to 158° F)

Certifications / Regulatory

  • Wi-Fi certified 802.11a/b/g/n
  • FIPS/TAA certified SKU available Product meets EMC, safety and wireless standards of over 50 countries inclusive of; USA (FCC), Canada, EU, Japan, Korea, China. For more country-specific regulatory information, and approvals, please see your Dell representative.

Minimum OS version

  • 5.0.2.1

Extended Life Warranty*

*Select Networking Products carry an Extended Life Warranty with Basic Hardware Service. Warranty covers repair or replacement of the product for as long as it remains in use by the customer. In the event of discontinuance of product manufacture, Dell Extended Life Warranty extends until five (5) years after end of product model sales. Warranty limits any power supply, antennae or accessories to one (1) year from date of purchase. Warranty does not include troubleshooting, configuration, or other advanced service provided by Dell ProSupport. The Extended Life Limited Hardware Warranty is not transferrable. For more information see dell.com/warranty.

Performance Table:

W-AP124 and W-AP125 RF Performance Table
  Max TX power per active TX chain (dBm) RX Sensitivity (dBm) Max TX power per active TX chain (dBm) RX Sensitivity (dBm)
  2.4 GHz 5 GHz
802.11b
1Mbps 18 -93 - -
2Mbps 18 -91 - -
5.5Mbps 18 -90 - -
11Mbps 18 -88 - -
802.11a/g
6Mbps 17 -92 17 -91
9Mbps 17 -92 17 -91
12Mbps 17 -92 17 -91
18Mbps 17 -91 17 -90
24Mbps 17 -88 17 -87
36Mbps 17 -85 16 -83
48Mbps 16 -81 15 -79
54Mbps 13 -79 13 -77
802.11n HT20
MCS0 18 -92 17 -91
MCS1 18 -91 17 -89
MCS2 18 -89 17 -87
MCS3 18 -85 17 -84
MCS4 18 -82 17 -80
MCS5 17 -78 17 -76
MCS6 13 -76 13 -74
MCS7 11 -75 12 -72
MCS8 18 -90 17 -89
MCS9 18 -89 17 -87
MCS10 18 -87 17 -85
MCS11 18 -83 17 -82
MCS12 18 -80 17 -78
MCS13 17 -76 17 -74
MCS14 13 -74 13 -72
MCS15 11 -73 12 -70
802.11n HT40
MCS0 18 -89 17 -88
MCS1 18 -87 17 -85
MCS2 18 -84 17 -83
MCS3 18 -84 17 -80
MCS4 18 -78 17 -77
MCS5 17 -74 17 -72
MCS6 13 -72 13 -70
MCS7 11 -71 12 -67
MCS8 18 -87 17 -86
MCS9 18 -85 17 -83
MCS10 18 -82 17 -81
MCS11 18 -82 17 -78
MCS12 18 -76 17 -75
MCS13 17 -72 17 -70
MCS14 13 -70 13 -68
MCS15 11 -69 12 -65

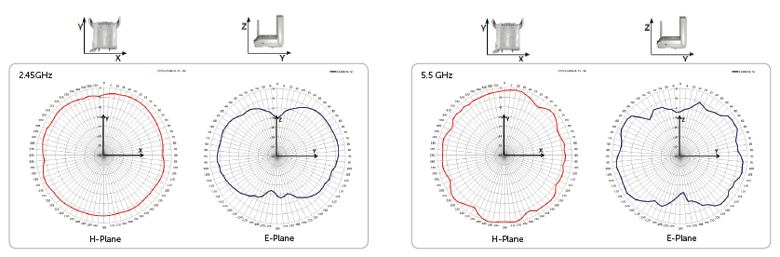

W-AP125 Antenna Plots

W-AP125 Antenna Plots
