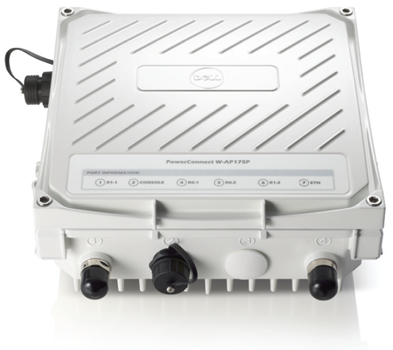

Dell Networking W-AP175 Series Access Point
Deploy flexible, high-speed APs for your wireless LAN

Dell Networking W-AP175 Series Access Point

Sorry, this product is no longer available, Please, contact us for a replacement product!

Overview:

The multifunction Dell Networking W-AP175 series access points are hardened outdoor dual-radio 802.11n access points (AP) designed to provide maximum deployment fl exibility in high-density campuses, storage yards, warehouses, container/transportation facilities, extreme industrial production areas and other harsh environments. The high-performance W-AP175 series delivers wire-like performance at data rates up to 300 Mbps per radio and is available in three models: W-AP175P operating from standard 802.3at power-over-Ethernet (PoE+) source, W-AP175AC operating from 100-240 volt AC power source and W-AP175DC operating from a 12-48 volt DC power supply. Both W-AP175AC and W-AP175DC powered models provide an 802.2af PoE power source on the Ethernet interface.

The W-AP175 series features two 2x2 MIMO dualband 2.4-GHz/5-GHz radios with four antenna interfaces. Each radio is capable of providing maximum data rate of 300Mbps and a maximum transmit power of up to 25dBm. With wall and mast mounting options, the W-AP175 series is built to provide fl exible mounting and deployment. Engineered to survive in harsh outdoor environments, the W-AP175 series withstands exposure to high and low temperatures, persistent moisture and precipitation, and is sealed for protection from airborne contaminants. Both power and Ethernet ports include surge protection.

As an 802.11n AP, the W-AP175 series works with the complete portfolio of Dell’s Networking W-Series centralized Mobility Controllers and delivers speed and reliability comparable to a wired LAN. It also increases performance by utilizing techniques such as channel bonding, block acknowledgement and MIMO radios. Advanced antenna technology also increases range and reliability.

A key to ensuring wire-like performance and reliability is Adaptive Radio Management (ARM), which manage the 2.4-GHz and 5-GHz radio bands to deliver maximum client performance. Adaptive Radio Management enables diff erent 802.11 a, b,g and n wireless clients to operate on the same network at maximum possible performance

through the use of band steering, airtime fairness policies between clients, and by managing channel interference that may occur between access points. The multifunction W-AP175 series can be confi gured through the Dell’s PowerConnect Mobility Controller to provide wireless LAN access with part- time air monitoring, dedicated air monitoring for wireless IPS and spectrum analysis, Remote AP (RAP) functionality or secure enterprise mesh.

Networking W-Series Access Points:

Dell Networking Products
Dell W-Series Access Points
W-Series AP224/225 802.11ac Access Points W-Series AP224/225 802.11ac Access Points
W-Series AP224 (external antenna) and W-Series AP225 (internal antenna) are 802.11ac access points, supporting the new 5GHz industry standard for gigabit wireless data rates. These purpose-built 3x3 MIMO 802.11ac access points are designed to deliver blazing fast performance that is up to three times higher than comparable 802.11n access points. Dual-radio configurations enable flexible deployments:
  • 5GHz: 3x3 MIMO for 802.11ac, delivering data rates up to 1.3Gbps
  • 2.4GHz: 3x3 MIMO for 802.11n, delivering data rates up to 450Mbps

The AP224 and AP225 each include dual GbE ports to access wired backbones and are powered by Power-over-Ethernet 802.3at (PoE+) or an optional adapter.

W-Series AP274/275 802.11ac Outdoor Access Points  W-Series AP274/275 802.11ac Outdoor Access Points
W-Series AP274/275 access points are innovative and aesthetic designs that deliver Gigabit WiFi performance to 802.11ac mobile devices. These purpose-built access points are designed to survive harsh outdoor environments, including extreme high and low temperatures as well as persistent moisture and precipitation, and are fully sealed to keep out airborne contaminants. With a maximum data rate of 1.3Gbps in the 5-GHz band and 600Mbps in the 2.4-GHz band, the AP274/275 outdoor APs support concurrent dual-radio operation.
W-Series AP155/155P Wired + Wireless Access Points  W-Series AP155/155P Wired + Wireless Access Points
Dual-band, dual-radio APs offering wire-like data rates of up to 450Mbps per radio. The AP155 and AP155P each have four ports available to the wired network and a USB port to connect to 3G and 4G networks. The W-Series AP155P has two Power-over-Ethernet (PoE)-capable LAN ports that can be used to power an external PoE-enabled device, such as an IP phone.
  • Dual-radio, concurrent dual-band access points
  • 2x2 MIMO with two spatial streams and up to 300Mbps wireless data rate in 2.4GHz
  • 3x3 MIMO with three spatial streams and up to 450Mbps wireless data rate in 5GHz
W-AP134/135 Access Points  W-AP134/135 Access Points
Enterprise-grade W-Series AP134 (external antenna) and AP135 (internal antenna) are the highest-performing W-Series 802.11n dual-radio indoor access points, designed to deliver data rates of up to 450Mbps per radio, up to 900Mbps total for denser environments.
W-Series AP114/115 Access Points  W-Series AP114/115 Access Points
W-Series AP114 (external antenna) and AP115 (internal antennas) are high-performance, dual-radio 802.11n access points designed to deliver data rates up to 450Mbps per radio, suited for medium density deployments.
 W-AP104/105 Access Points W-AP104/105 Access Points
W-Series AP104 (external antenna) and W-Series AP105 (internal antenna) are enterprise-grade dual-radio 802.11n indoor access points designed to deliver data rates of up to 300Mbps per radio, up to 600Mbps total for medium density deployments.
W-Series AP103 Access Points  W-Series AP103 Access Points
W-Series AP103 access points provide cost-effective dual-band coverage in medium-density enterprise WiFi environments while minimizing interference from cellular networks. These compact APs deliver wireless data rates up to 300Mbps per radio employing 802.11n technology with two spatial MIMO streams. The AP103 features a 2.4-GHz and a 5-GHz radio, each with 2x2:2 MIMO and two integrated omnidirectional down-tilt antennas per radio.
 Networking W-AP175 Outdoor Access Points W-AP175 Outdoor Access Points
Enterprise-grade family of mainstream dual-radio 802.11n outdoor access points designed to deliver data rates of up to 300Mbps per radio, up to 600Mbps total. Ideal for campuses, industrial parks and other harsh, outdoor open-air environments, W-Series AP175 access points can be powered via PoE, AC or DC power sources and include convenient wall and mast mounting options as well as a solar shield.
 W-AP92/93 Access Points W-AP92/93 Access Points
W-Series AP92 (external antenna) and W-Series AP93 (internal antenna) are entry-level, enterprise-grade, single-radio 802.11n indoor access points designed to deliver data rates of up to 300Mbps.
 W-AP93H Wired + Wireless Access Point W-AP93H Wired + Wireless Access Point
A special-purpose 802.11n indoor access point with built-in 4-port fast Ethernet switch designed to deliver wireless data rates of up to 300Mbps. W-Series AP93H is specifically designed to be mounted over a network wall socket. Mounting kits sold separately.
 W-AP68 Access Point W-AP68 Access Point
Designed to deliver data rates of up to 150Mbps for organizations that are looking for a basic enterprise-grade 802.11n access point.

Compare Entry Level:

Legend: S —Standard AO — Available Optional N — Not Available

W-Series Access Points Entry Level Comparision Specs
  W-AP92 /
W-AP93
W-AP93H+ W-AP103

W-AP104 /
W-AP105

W-AP175AC /
W-AP175P
Data rate 300Mbps 300Mbps 300 Mbps
2x2 MIMO
802.11n
600Mbps
(300Mbps each radio)
600Mbps
(300Mbps each radio)
Radios Dual radios:
2.4 and 5GHz band
Single radio:
2.4 or 5GHz band
Dual radio,
5-GHz and 2.4-GHz 802.11n 2x2:2
Dual radios:
2.4 and 5GHz band
Dual radios:
2.4 and 5GHz band
Operating frequencies 2.4-2.5 GHz 2.4-2.5 GHz 2.4000 GHz to 2.4835 GHz
5.150 to 5.250 GHz
5.250 to 5.350 GHz
5.470 to 5.725 GHz
5.725 to 5.850 GHz
N/A N/A
Antennas W-AP92:
two RP-SMA for W-AP93 two internal omni-directional, dual-band
Two internal omni-directional, dual-band antennas Four integrated down-tilt omni-directional antennas for 2x2 MIMO with maximum antenna gain of 3.9 dBi at 2.44 GHz,
4.1 dBi at 5.2 GHz and
4.3 dBi at 5.8 GHz. Built-in antennas are optimized for horizontal ceiling mounted orientation of the AP.
W-AP104:
four RP-SMA for external 2.4 and 5GHz antennas W-AP105:
four internal omni-directional, dual-band
Four N-type interfaces (two per band) for external 2.4 and 5GHz antennas
Network interfaces One 100/1000 Base-T Ethernet, auto- sensing MDI/MDX One 10/100/100/1000 Base-T Ethernet, auto-sensing MDI/MDX, Four 10/100Base-T, and One passive RJ-45 pass-through interface (2 ports) 10/100/1000 BASE-T Ethernet network interface (RJ-45); Auto-sensing link speed and MDI/MDX; 802.3az Energy Efficient Ethernet (EEE); PoE-PD: 48 Vdc (nominal) 802.3af PoE or 802.3at PoE+ One 100/1000 Base-T Ethernet, auto- sensing MDI/MDX One 100/1000 Base-T Ethernet, auto- sensing MDI/MDX
Other interfaces Console interface (RJ45) Console interface (RJ45) DC power interface, accepts 1.7/4.0-mm center-positive circular plug with 9.5-mm length; Serial console interface (proprietary; optional adapter cable available) Console interface (RJ45) Console interface (USB)
Power over Ethernet (PoE) interfaces 48V DC 802.3af- compatible 48V DC 802.3af- compatible Power over Ethernet (PoE): 48 Vdc (nominal) 802.3af or 802.3at-compliant source W-AP175P: 802.3at-compatible PoE input (PD)
W-AP175AC and W-AP175DC: 802.3af compatible PoE output (PSE)
W-AP175P: 802.3at-compatible PoE input (PD)
W-AP175AC and W-AP175DC: 802.3af compatible PoE output (PSE)
Power interfaces 12V DC, 1.25A 12V DC, 1.25A Direct DC source: 12 Vdc nominal, +/- 5% 48V DC 802.3af- compatible 12–48V DC or 100–240V AC
Power consumption 10 Watts
(maximum)
9 Watts (maximum) Max 9.5W (POE)
or 8W (DC)
12V DC, 1.25A
12.5 Watts (maximum)
18 Watts
(maximum)
Environmental Class Indoor, plenum-rated Indoor Indoor Indoor, plenum-rated Outdoor
Operating temperature 0°C to 50°C
(32°F to 122°F)
0°C to 40°C
(32°F to 104°F)
0° C to +40° C
(+32° F to +104° F)
0°C to 50°C
(32°F to 122°F)
W-IAP175P:
–30°C to +60°C
(–22°Fto +140°F)
W-IAP175AC
and W-IAP175DC:
–40°C to +55°C
(–40°F to 131°F)

Specifications:

Dell PowerConnect W-AP175 Access Point Specifications

Operating mode

  • Multiservice concurrent 802.11a/n + b/g/n
  • WLAN Spectrum Monitor
  • Air Monitor, spectrum monitor
  • Remote AP
  • Secure enterprise mesh

Radios

  • Multifunction, dual radio, each radio capable of 2.4-GHz and 5-GHz operation
  • Both 802.11n radios implement 2x2 MIMO with two spatial streams, providing up to 300 Mbps data rate per radio
  • Maximum ratio combining (MRC) for improved receiver performance
  • Maximum transmit power per radio: 25dBm

Wireless radio specifications

  • AP type: Dual-radio, dual-band 802.11n outdoor
  • Supported frequency bands (country-specific restrictions apply):
    - 2.400 to 2.4835 GHz
    - 5.150 to 5.250 GHz with Dynamic Frequency Selection (DFS)
    capability
    - 5.250 to 5.350 GHz with Dynamic Frequency Selection (DFS)
    capability
    - 5.470 to 5.725 GHz with Dynamic Frequency Selection (DFS)
    capability
    - 5.725 to 5.850 GHz with Dynamic Frequency Selection (DFS)
    capability
  • Available channels: Controller-managed, dependent upon configured regulatory domain
  • Maximum transmit power:
    - 2.4 GHz: Up to 25 dBm (limited by local regulatory
    requirements)
    - 5 GHz: Up to 25 dBm (limited by local regulatory
    requirements)
    - Transmit power: Configurable in increments of 0.5 dBm
  • Supported radio technologies:
    - 802.11b: Direct-sequence spread-spectrum (DSSS)
    - 802.11a/g/n: Orthogonal frequency division multiplexing
    (OFDM)
    - 802.11n: 2x2 MIMO with two spatial streams
  • Supported modulation types:
    - 802.11b: BPSK, QPSK, CCK
    - 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
  • Association rates (Mbps):
    - 802.11b: 1, 2, 5.5, 11
    - 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
    - 802.11n: MCS0 - MCS15 (6.5 Mbps to 300 Mbps)
  • 802.11n high-throughput (HT) support: HT 20/40
  • 802.11n packet aggregation: A-MPDU, A-MSDU

Antenna

  • Quad, N-type female interfaces (2 x 2.4 GHz, 2 x 5 GHz) for external antenna support (supports MIMO)

Interfaces

  • 1 x 10/100/1000 BASE-T Ethernet (RJ-45), auto-sensing link speed and MDI/MDX
  • 1 x USB console interface

Power

  • W-AP175P: 48-volt DC 802.3at power over Ethernet (PoE+)
  • W-AP175AC: 100-240 volt AC from external AC power source
  • W-AP175DC: 12-48 volt DC from external DC power source
    Maximum power consumption: 18 watts (excludes power consumed by any PoE device connected to and powered by the W-AP175AC or W-AP175DC)

Mounting

  • Wall or mast mounted using the mounting bracket supplied with the unit; solar shield included

Mechanical

  • Dimensions/weight (unit)
    - 60mm x 240mm x 105mm (10.2” x 9.4” x 4.1”)
    - Weight (AP-175P): 3.5kg (7.7lb)
    - Weight (AP-175AC & AP-175DC): 4.25kg (9.4lb)

Environmental

  • Operating:
    - Temperature: -30o C to 55o C (-22o F to 131o F)
    - Relative humidity: 5% to 95% non-condensing
    - Altitude: Up to 3,000 meters (9,850 feet)
  • Storage and transportation temperature range
    -40o C to 70o C (-40o F to 158o F)
  • Weather rating: IP66
  • Wind survivability: Up to 165 mph
  • Shock and vibration: ETSI 300-19-2-4 spec T41.E class 4M3
  • Transportation: ISTA 2A

Certifications/Regulatory

  • Wi-Fi certified 802.11a/b/g/n
  • FIPS/TAA certified SKU available
    Product meets EMC, safety and wireless standards of over 50 countries inclusive of; USA (FCC), Canada, EU, Japan, Korea, China. For more country-specific regulatory information, and approvals, please see your Dell representative.

Minimum OS version

  • 5.0.3.2

Warranty

  • One-Year Warranty

Extended Life Warranty*

Performance Table:

Dell PowerConnect W-AP175 Access Point RF Performance Table
  Max TX power per active TX chain (dBm) RX Sensitivity (dBm) Max TX power per active TX chain (dBm) RX Sensitivity (dBm)
  2.4 GHz 5 GHz
802.11b
1Mbps 20 -96 - -
2Mbps 20 -96 - -
5.5Mbps 20 -94 - -
11Mbps 20 -93 - -
802.11a/g
6Mbps 20 -96 22 -97
9Mbps 20 -96 22 -96
12Mbps 20 -96 22 -96
18Mbps 20 -95 22 -94
24Mbps 19 -92 22 -88
36Mbps 18 -89 20 -86
48Mbps 17 -85 19 -82
54Mbps 17 -83 18 -80
802.11n HT20
MCS0 22 -94 21 -97
MCS1 22 -93 20 -94
MCS2 22 -92 19 -91
MCS3 22 -89 18 -87
MCS4 21 -85 17 -86
MCS5 20 -81 16 -81
MCS6 19 -80 15 -79
MCS7 18 -78 15 -77
MCS8 22 -94 21 -97
MCS9 22 -93 20 -94
MCS10 22 -92 19 -91
MCS11 22 -89 18 -87
MCS12 21 -85 17 -86
MCS13 20 -81 16 -81
MCS14 19 -80 15 -79
MCS15 18 -78 15 -77
802.11n HT40
MCS0 21 -92 19 -92
MCS1 21 -91 19 -90
MCS2 21 -89 18 -88
MCS3 20 -86 17 -85
MCS4 19 -83 16 -83
MCS5 18 -79 15 -79
MCS6 18 -77 14 -77
MCS7 17 -75 14 -73
MCS8 21 -92 19 -92
MCS9 21 -91 19 -90
MCS10 21 -89 18 -88
MCS11 20 -86 17 -85
MCS12 19 -83 16 -83
MCS13 18 -79 15 -79
MCS14 18 -77 14 -77
MCS15 17 -75 14 -73

Documentation:

Download the Dell Networking W-AP175 Access Point Data Sheet (PDF).
