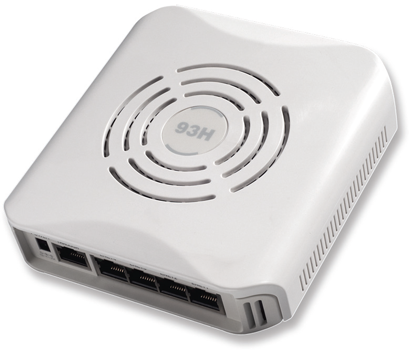

Dell Networking W-AP93H Access Point
Single-radio indoor access points with built in 4-port Ethernet switch

Networking W-AP93H Access Point

Sorry, this unit has been discontinued. Please, contact us for a replacement product!

Overview:

The multifunction Dell Networking W-AP93H is an indoor 802.11n access point (AP) with four Ethernet ports designed to easily mount over Ethernet wall plates and uses existing structured cabling systems to provide secure wired and Wi-Fi network access in places like dormitories, classroom, hotels, small offices, medical clinics and multi tenants environments.

This compact, high-speed AP delivers wire-like performance at data rates up to 300 Mbps and is built to provide years of trouble free operation and is backed by Dell’s extended lifetime warranty.

Working with Dell Networking W-Series line of centralized Mobility Controllers, the W-AP93H greatly simplifies RF coverage planning and significantly reduces wireless LAN (WLAN) deployment costs while delivering secure, high-speed network services for both wireless and wired devices.

802.11n enables the use of wireless as a primary connection with speed and reliability comparable to a wired LAN. It also increases performance by utilizing techniques such as channel bonding, block acknowledgement and MIMO radios. Advanced antenna technology also increases range and reliability.

The key to ensuring wire-like performance and reliability is Dell Networking W-Series unique Adaptive Radio Management and spectrum analysis capabilities, which manage both the 2.4-GHz and 5-GHz radio bands to deliver maximum client performance while mitigating any RF interference.

The multifunction W-AP93H can be configured through the Mobility Controller to provide WLAN access with part-time air monitoring, dedicated air monitoring for wireless IPS and spectrum analysis, Remote AP (RAP) functionality or secure enterprise mesh. The W-AP93H features a 10/100/1000BASE-T Ethernet “uplink” interface and can operate from standard 802.3af power-over-Ethernet (PoE) sources or a 12-volt DC power supply.

In addition, the W-AP93H offers four 10/100BASE-T Ethernet “downlink” interfaces to securely attach wired devices.

Networking W-Series Access Points:

Dell Networking Products
Dell W-Series Access Points
W-Series AP224/225 802.11ac Access Points W-Series AP224/225 802.11ac Access Points
W-Series AP224 (external antenna) and W-Series AP225 (internal antenna) are 802.11ac access points, supporting the new 5GHz industry standard for gigabit wireless data rates. These purpose-built 3x3 MIMO 802.11ac access points are designed to deliver blazing fast performance that is up to three times higher than comparable 802.11n access points. Dual-radio configurations enable flexible deployments:
  • 5GHz: 3x3 MIMO for 802.11ac, delivering data rates up to 1.3Gbps
  • 2.4GHz: 3x3 MIMO for 802.11n, delivering data rates up to 450Mbps

The AP224 and AP225 each include dual GbE ports to access wired backbones and are powered by Power-over-Ethernet 802.3at (PoE+) or an optional adapter.

W-Series AP274/275 802.11ac Outdoor Access Points  W-Series AP274/275 802.11ac Outdoor Access Points
W-Series AP274/275 access points are innovative and aesthetic designs that deliver Gigabit WiFi performance to 802.11ac mobile devices. These purpose-built access points are designed to survive harsh outdoor environments, including extreme high and low temperatures as well as persistent moisture and precipitation, and are fully sealed to keep out airborne contaminants. With a maximum data rate of 1.3Gbps in the 5-GHz band and 600Mbps in the 2.4-GHz band, the AP274/275 outdoor APs support concurrent dual-radio operation.
W-Series AP155/155P Wired + Wireless Access Points  W-Series AP155/155P Wired + Wireless Access Points
Dual-band, dual-radio APs offering wire-like data rates of up to 450Mbps per radio. The AP155 and AP155P each have four ports available to the wired network and a USB port to connect to 3G and 4G networks. The W-Series AP155P has two Power-over-Ethernet (PoE)-capable LAN ports that can be used to power an external PoE-enabled device, such as an IP phone.
  • Dual-radio, concurrent dual-band access points
  • 2x2 MIMO with two spatial streams and up to 300Mbps wireless data rate in 2.4GHz
  • 3x3 MIMO with three spatial streams and up to 450Mbps wireless data rate in 5GHz
W-AP134/135 Access Points  W-AP134/135 Access Points
Enterprise-grade W-Series AP134 (external antenna) and AP135 (internal antenna) are the highest-performing W-Series 802.11n dual-radio indoor access points, designed to deliver data rates of up to 450Mbps per radio, up to 900Mbps total for denser environments.
W-Series AP114/115 Access Points  W-Series AP114/115 Access Points
W-Series AP114 (external antenna) and AP115 (internal antennas) are high-performance, dual-radio 802.11n access points designed to deliver data rates up to 450Mbps per radio, suited for medium density deployments.
 W-AP104/105 Access Points W-AP104/105 Access Points
W-Series AP104 (external antenna) and W-Series AP105 (internal antenna) are enterprise-grade dual-radio 802.11n indoor access points designed to deliver data rates of up to 300Mbps per radio, up to 600Mbps total for medium density deployments.
W-Series AP103 Access Points  W-Series AP103 Access Points
W-Series AP103 access points provide cost-effective dual-band coverage in medium-density enterprise WiFi environments while minimizing interference from cellular networks. These compact APs deliver wireless data rates up to 300Mbps per radio employing 802.11n technology with two spatial MIMO streams. The AP103 features a 2.4-GHz and a 5-GHz radio, each with 2x2:2 MIMO and two integrated omnidirectional down-tilt antennas per radio.
 Networking W-AP175 Outdoor Access Points W-AP175 Outdoor Access Points
Enterprise-grade family of mainstream dual-radio 802.11n outdoor access points designed to deliver data rates of up to 300Mbps per radio, up to 600Mbps total. Ideal for campuses, industrial parks and other harsh, outdoor open-air environments, W-Series AP175 access points can be powered via PoE, AC or DC power sources and include convenient wall and mast mounting options as well as a solar shield.
 W-AP92/93 Access Points W-AP92/93 Access Points
W-Series AP92 (external antenna) and W-Series AP93 (internal antenna) are entry-level, enterprise-grade, single-radio 802.11n indoor access points designed to deliver data rates of up to 300Mbps.
 W-AP93H Wired + Wireless Access Point W-AP93H Wired + Wireless Access Point
A special-purpose 802.11n indoor access point with built-in 4-port fast Ethernet switch designed to deliver wireless data rates of up to 300Mbps. W-Series AP93H is specifically designed to be mounted over a network wall socket. Mounting kits sold separately.
 W-AP68 Access Point W-AP68 Access Point
Designed to deliver data rates of up to 150Mbps for organizations that are looking for a basic enterprise-grade 802.11n access point.

Compare Entry Level:

Legend: S —Standard AO — Available Optional N — Not Available

W-Series Access Points Entry Level Comparision Specs
  W-AP92 /
W-AP93
W-AP93H+ W-AP103

W-AP104 /
W-AP105

W-AP175AC /
W-AP175P
Data rate 300Mbps 300Mbps 300 Mbps
2x2 MIMO
802.11n
600Mbps
(300Mbps each radio)
600Mbps
(300Mbps each radio)
Radios Dual radios:
2.4 and 5GHz band
Single radio:
2.4 or 5GHz band
Dual radio,
5-GHz and 2.4-GHz 802.11n 2x2:2
Dual radios:
2.4 and 5GHz band
Dual radios:
2.4 and 5GHz band
Operating frequencies 2.4-2.5 GHz 2.4-2.5 GHz 2.4000 GHz to 2.4835 GHz
5.150 to 5.250 GHz
5.250 to 5.350 GHz
5.470 to 5.725 GHz
5.725 to 5.850 GHz
N/A N/A
Antennas W-AP92:
two RP-SMA for W-AP93 two internal omni-directional, dual-band
Two internal omni-directional, dual-band antennas Four integrated down-tilt omni-directional antennas for 2x2 MIMO with maximum antenna gain of 3.9 dBi at 2.44 GHz,
4.1 dBi at 5.2 GHz and
4.3 dBi at 5.8 GHz. Built-in antennas are optimized for horizontal ceiling mounted orientation of the AP.
W-AP104:
four RP-SMA for external 2.4 and 5GHz antennas W-AP105:
four internal omni-directional, dual-band
Four N-type interfaces (two per band) for external 2.4 and 5GHz antennas
Network interfaces One 100/1000 Base-T Ethernet, auto- sensing MDI/MDX One 10/100/100/1000 Base-T Ethernet, auto-sensing MDI/MDX, Four 10/100Base-T, and One passive RJ-45 pass-through interface (2 ports) 10/100/1000 BASE-T Ethernet network interface (RJ-45); Auto-sensing link speed and MDI/MDX; 802.3az Energy Efficient Ethernet (EEE); PoE-PD: 48 Vdc (nominal) 802.3af PoE or 802.3at PoE+ One 100/1000 Base-T Ethernet, auto- sensing MDI/MDX One 100/1000 Base-T Ethernet, auto- sensing MDI/MDX
Other interfaces Console interface (RJ45) Console interface (RJ45) DC power interface, accepts 1.7/4.0-mm center-positive circular plug with 9.5-mm length; Serial console interface (proprietary; optional adapter cable available) Console interface (RJ45) Console interface (USB)
Power over Ethernet (PoE) interfaces 48V DC 802.3af-compatible 48V DC 802.3af- compatible Power over Ethernet (PoE): 48 Vdc (nominal) 802.3af or 802.3at-compliant source W-AP175P: 802.3at-compatible PoE input (PD)
W-AP175AC and W-AP175DC: 802.3af compatible PoE output (PSE)
W-AP175P: 802.3at-compatible PoE input (PD)
W-AP175AC and W-AP175DC: 802.3af compatible PoE output (PSE)
Power interfaces 12V DC, 1.25A 12V DC, 1.25A Direct DC source: 12 Vdc nominal, +/- 5% 48V DC 802.3af- compatible 12–48V DC or 100–240V AC
Power consumption 10 Watts
(maximum)
9 Watts (maximum) Max 9.5W (POE)
or 8W (DC)
12V DC, 1.25A
12.5 Watts (maximum)
18 Watts
(maximum)
Environmental Class Indoor, plenum-rated Indoor Indoor Indoor, plenum-rated Outdoor
Operating temperature 0°C to 50°C
(32°F to 122°F)
0°C to 40°C
(32°F to 104°F)
0° C to +40° C
(+32° F to +104° F)
0°C to 50°C
(32°F to 122°F)
W-IAP175P:
–30°C to +60°C
(–22°Fto +140°F)
W-IAP175AC
and W-IAP175DC:
–40°C to +55°C
(–40°F to 131°F)

Specifications:

Dell Networking W-AP93H Access Points Specifications

Operating mode

  • 802.11 a/b/g/n Access Point
  • Campus AP, air monitor (AM) and spectrum monitor
  • Remote AP, AM and spectrum monitor

Radios

  • Software-configurable dual radio capable of supporting 2.4 GHz and 5 GHz
  • 2x2 MIMO with 2 spcial streams, providing up to 300Mbps data rate

RF management

  • Automatic transmit power and channel management control with auto coverage hole correction via Adaptive Radio Management (ARM)
  • Spectrum analysis scans the 2.4-GHz and 5-GHz radio bands to provide increased visibility into non-802.11n RF interference sources and their effect on 802.11n channel quality

Advanced features

  • Remote AP, spectrum analysis, secure enterprise mesh and wireless intrusion protection
  • MACSec security for authorization and data encryption between the AP ports and the wired access layer (requires MACSec support on the wired edge switch)
  • Integrated Trusted Platform Module (TPM) for secure storage of credentials and keys
  • SecureJack-capable for secure tunneling of wired Ethernet traffic

Antenna

  • Integrated omni-directional antenna elements
    - 2.4GHz/2.5 dBi
    - 5GHz/4.0 dBi

Wireless radio specifications

  • AP type: Single radio, dual-band 802.11n indoor
  • Supported Frequency Bands (country-specific restrictions apply):
    - 2.400 - 2.4835 GHz
    - 5.150 - 5.250 GHz/5.250 - 5.350 GHz/5.470 - 5.725 Hz/5.725 - 5.850 GHz
  • Available Channels: Controller-managed, dependent upon configured regulatory domain
  • Platform supports Dynamic Frequency Selection (DFS) to allow optimal usage of available RF spectrum
  • Supported Radio Technologies:
    - 802.11b: Direct-sequence spread-spectrum (DSSS)
    - 802.11a/g/n: Orthogonal frequency division multiplexing OFDM)
    - 802.11n: 2x2 MIMO with up to two spatial streams
  • Supported Modulation Types:
    - 802.11n: 2x2 MIMO with up to two spatial streams
    - 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
  • Transmit Power: Configurable in increments of 0.5 dBm
  • Maximum Transmit Power (aggregated for two active transmit chains):
    - 2.4 GHz: 21 dBm (limited by local regulatory requirements)
    - 5 GHz: 21 dBm (limited by local regulatory requirements)
  • Maximum Ratio Combining (MRC) for improved receiver performance
  • Cyclic Delay Diversity (CDD) for improved downlink RF performance
  • Association Rates (Mbps):
    - 802.11b: 1, 2, 5.5, 11
    - 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
    - 802.11n: MCS0 – MCS15 (6.5 Mbps to 300 Mbps)
  • 802.11n High-Throughput (HT) Support: HT 20/40
  • 802.11n Packet Aggregation: A-MPDU, A-MSDU

Power

  • 48 V DC 802.3af PoE or 802.3at PoE+
  • 12 V DC external AC supplied power (adapter sold separately)
  • Maximum power consumption: 9 watts

Interfaces

  • Network:
    - 1x10/100/1000BASE-T Ethernet (RJ-45), auto-sensing link speed and MDI/MDX
    - 4 x 10/100 BASE-T Ethernet (RJ-45), auto-sensing link speed and MDI/MDX
    - 1 x passive RJ 45 Pass-through interface
  • Power:
    - 1 x DC power Connector
  • Other:
    - 1 x RJ-45 console interface

Mounting

  • Standard:
    - Mount plate, supporting worldwide electrical wall box standards

Mechanical

  • Dimensions/Weight (Unit, with mount bracket):
    - Unit: 760 g (1.68 lb), 130 mm x 143 mm x 35 mm/425 g

Environmental

  • Operating:
    - Temp: 0° C to +40° C (+32° F to +104° F)
    - Humidity: 5 to 95% non-condensing
  • Storage and Transportation Temperature Range:
    - Temp: -40° C to +70° C (-40° F to +158° F)

Certifications/Regulatory

  • Wi-Fi certified 802.11a/b/g/n
    Product meets EMC, safety and wireless standards of over 50 countries inclusive of; USA (FCC), Canada, EU, Japan, Korea, China. For more country-specific regulatory information, and approvals, please see your Dell representative.

Minimum OS version

  • 6.1.3.0

Extended Life Warranty*

*Select Networking Products carry an Extended Life Warranty with Basic Hardware Service. Warranty covers repair or replacement of the product for as long as it remains in use by the customer. In the event of discontinuance of product manufacture, Dell Extended Life Warranty extends until five (5) years after end of product model sales. Warranty limits any power supply, antennae or accessories to one (1) year from date of purchase. Warranty does not include troubleshooting, configuration, or other advanced service provided by Dell ProSupport. The Extended Life Limited Hardware Warranty is not transferrable. For more information see dell.com/warranty.

Performance Table:

Dell Networking W-AP93H Access Points RF Performance Table
  Max TX power per active TX chain (dBm) RX Sensitivity (dBm) Max TX power per active TX chain (dBm) RX Sensitivity (dBm)
  2.4 GHz 5 GHz
802.11b
1Mbps 18 -94 - -
2Mbps 18 -94 - -
5.5Mbps 18 -93 - -
11Mbps 18 -91 - -
802.11a/g
6Mbps 18 -92 18 -92
9Mbps 18 -91 18 -91
12Mbps 18 -87 18 -87
18Mbps 18 -86 18 -86
24Mbps 18 -84 18 -84
36Mbps 15 -82 15 -82
48Mbps 14 -79 14 -79
54Mbps 14 -76 14 -76
802.11n HT20
MCS0 18 -92 18 -92
MCS1 17 -90 17 -90
MCS2 17 -88 17 -88
MCS3 16 -85 16 -85
MCS4 16 -81 16 -81
MCS5 15 -79 15 -79
MCS6 15 -77 14 -77
MCS7 14 -73 13 -73
MCS8 18 -92 18 -92
MCS9 17 -90 17 -90
MCS10 17 -88 17 -88
MCS11 16 -85 16 -85
MCS12 16 -81 16 -81
MCS13 15 -79 15 -79
MCS14 15 -77 14 -77
MCS15 14 -73 13 -73
802.11n HT40
MCS0 18 -92 18 -92
MCS1 17 -90 17 -90
MCS2 17 -88 17 -88
MCS3 16 -85 16 -85
MCS4 16 -81 16 -81
MCS5 15 -79 15 -79
MCS6 15 -77 14 -77
MCS7 14 -73 13 -73
MCS8 18 -92 18 -92
MCS9 17 -90 17 -90
MCS10 17 -88 17 -88
MCS11 16 -85 16 -85
MCS12 16 -81 16 -81
MCS13 15 -79 15 -79
MCS14 15 -77 14 -77
MCS15 14 -73 13 -73

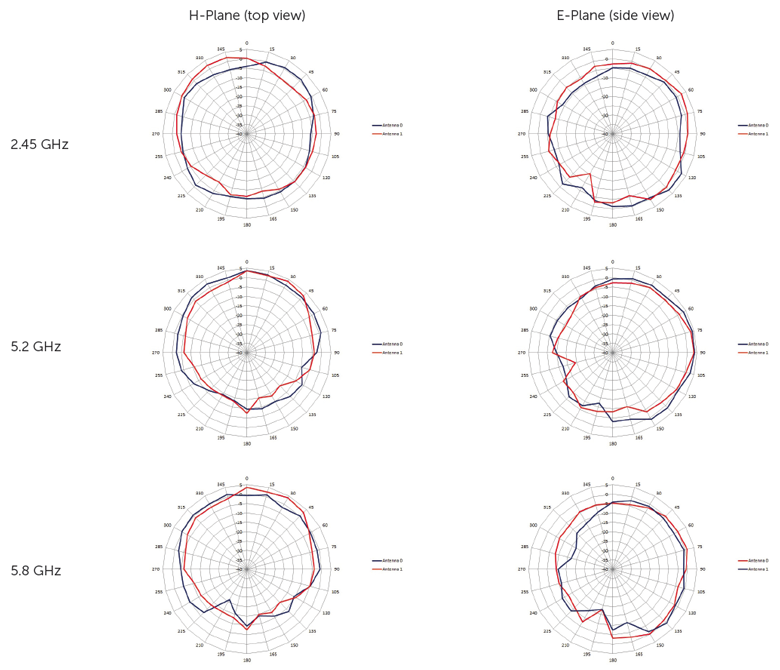

W-AP93H Antenna Plots

W-AP93H Antenna Plots

Documentation:

Download the Dell Networking W-AP93H Access Point Data Sheet (PDF).
