Dell N3208PX-ON

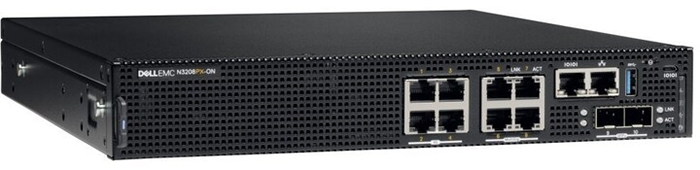

Dell EMC PowerSwitch N3208PX-ON Switch


Dell N3208PX-ON

Dell Products
USA: FREE Ground ShippingDell EMC PowerSwitch N3208PX-ON Switch
Compact, 4 x 1/2.5/5G RJ-45 with 802.3bt Type-4 (90W) PoE, 4 x 1G RJ-45 with 802.3bt Type-4 (90W) ports
#N3208PX-ON
Contact us for Pricing!

Click here to jump to more pricing!

Overview:

High performance Open networking 1GbE and 10GbE Multigigabit switches for modern campus networks

The N3200 switch series offers power-efficient and resilient 1GbE and 1/2.5/5/10GbE Multigigabit range of switching solution for advanced Layer 3 distribution for offices and campus networks. The series has high-performance capabilities and wire-speed performance utilizing a nonblocking architecture to easily handle unexpected traffic loads. Use dual internal hot-swappable 80PLUS Platinum certified power supplies for high availability and power efficiency. The switches offer simple management and scalability via an 400Gbps (full duplex) high-availability stacking architecture that allows management of up to 12 switches from a single IP address.

Modernize campus network architectures

Modernize campus network architectures with a powerefficient and resilient 1/2.5/5/10GbE switching solution with dense options of 802.3at (30W) or 802.3bt (60W/90W) PoE solutions to deliver clean power to wide range network devices such as wireless access points (APs), Voice-overIP (VoIP) handsets, video conferencing systems, security cameras, LED luminaires and many more.

Achieve high availability and full bandwidth utilization with Multichassis Link Aggregation (MLAG). N3200 series switches support MLAG to create active/active loopfree redundancy without spanning tree. Server rooms can deliver reliable server and storage connectivity with features to help save time and avoid configuration errors. N3200 supports VRF-lite, allowing it to be partitioned into multiple virtual routers with isolated control and data planes on the same physical switch. For greater interoperability in multivendor networks, N3200 switches offer the latest open-standard protocols.

Leverage familiar tools and practices

All N-Series switches include Dell EMC Networking OS6, designed for easier deployment, greater interoperability and a lower learning curve for network administrators. OS6 common command line interface (CLI) and graphic user interface (GUI) are intuitive, so skilled network administrators can get productive quickly. N3200 switches also support the Open Network Install Environment (ONIE), enabling installation of alternate network operating systems.

Deploy with confidence at any scale

N3200 series switches help create performance assurance with a data rate up to 1560Gbps (full duplex) and a forwarding rate up to 2167Mpps. Scale easily with built-in rear stacking ports. Switch stacks of up to 624 1/2.5/5/10GbE/25GbE ports can be managed from a single screen using the highly available stacking architecture for high-density aggregation with seamless redundant availability. The N-series switches’ lifetime warranty covers software upgrades, hardware repair or replacement, and optics and cables purchased with the switch.*

Purpose-built 8, 24 and 48 port Multi-Gig and Multi-Gig 802.3bt 90W PoE access switches

Built to help keep operating costs down, the N1500 Series can operate at temperatures up to 113°F (45°C) to help reduce cooling costs. Improve your overall efficiency with these great features:

  • Greater Power Over Ethernet capabilities – enable to run larger number of powered devices (video surveillance cameras, building automation, lighting, telephone systems, pos terminals, thin clients and the like) off of the power that our switches provide.
  • Greater choice of Network Operating Systems (OS6, Pica8) from leaders in Open Technologies that provide robust connectivity each with its unique strengths.
  • Newest silicon capabilities, increased downlink bandwidth (1GbE/2.5GbE/5GbE/10GbE), increased uplink bandwidth (25GbE), increased stacking bandwidth (400Gbps).

EIncrease employee efficiency with better connectivity

  • Modernize existing campus networks to handle modern workloads.
  • Facilitate Workforce Transformation and enhance employee productivity with immersive, bandwidth intensive applications.
  • Realize the many benefits of IoT and automation with enhanced PoE capabilities that newer Dell EMC PowerSwitch N series deliver.

*Select Networking products carry a Lifetime Limited Warranty with Basic Hardware Service (repair or replacement) for life. Repair or replacement does not include troubleshooting, configuration, or other advanced service provided by Dell EMC ProSupport. Details at https://www.dell.com/en-us/work/shop/networkingwarranty/cp/networkingwarranty

Features:

Hardware, performance and efficiency

  • Multigig Switches: Compact switches with up to 4 line-rate 1G/2.5G/5G RJ-45 copper ports and 4 line-rate 1G RJ-45 copper with four integrated 25GbE SFP28 ports. PoE variants with up to 4 ports of 802.3bt (90W) PoE.
  • 400Gbps stacking bandwidth using two 100GbE QSFP28 integrated rear stacking ports.
  • Available with dual 80PLUS Platinum certified hot swappable internal power supplies. Optional external power supply to extend PoE budgets on specific models.
  • Variable speed fan operation helps decrease cooling and power costs.
  • Energy-Efficient Ethernet and lower power PHYs reduce power to inactive ports and idle links, providing energy savings from the power cord to the port.
  • Dell EMC Fresh Air compliance for operation in environments up to 113°F (45°C) reduces cooling costs.

Deploying, configuring and managing

  • USB auto-configuration rapidly deploys the switch without complex TFTP configurations or sending technical staff to remote offices.
  • Management via an intuitive and familiar CLI, embedded web server (GUI), SNMP-based management console application (including Dell EMC OpenManage Network Manager), Telnet or serial connection.
  • Private VLAN extensions and Private VLAN Edge support.
  • AAA authorization, TACACS+ accounting and RADIUS support for comprehensive secure access support.
  • Authentication tiering allows network administrators to tier port authentication methods such as 802.1x, MAC Authentication Bypass and Captive Portal in priority order so that a single port can provide flexible access and security.
  • Achieve high availability and full bandwidth utilization with MLAG and support firmware upgrades without taking the network offline.
  • Layer 3 Advanced IPv4 and IPv6 functionality including BGP, VRF, BFD, PIM-SM/DM/SSM, IGMP/MLD, RIPv1/ v2, OSPFv2/v3
  • VXLAN support in hardware only
  • MACsec support in N3248PXE-ON hardware only

Specifications:


N3208PX-ON N3224T-ON N3224F-ON N3224P-ON N3224PX-ON N3248TE-ON N3248P-ON N3248X-ON N3248PXE-ON
Chassis
Ports 4 x RJ45 10M/ 100M/ 1G/ 2.5G/ 5G 802.3bt (up to 90W) PoE auto-sensing ports,

4 x 10M/ 100M/ 1000Mb 802.3bt (up to 90W) PoE autosensing ports,

2 x 10G SFP+ ports
24 x RJ45 10M/ 100M/ 1000Mb auto-sensing ports,

4 x 10G SFP+ ports,

2 x 100G QSFP28 ports
24 x 1G SFP,

4 x 10G SFP+ ports,

2 x 100G QSFP28 ports
24 x RJ45 10M/ 100M/ 1000Mb 802.3at (up to 30W) PoE autosensing ports,

4 x 10G SFP+ ports,

2 x 100G QSFP28 ports
24 x RJ45 10M/ 100M/ 1G/ 2.5G/ 5G/ 10G 802.3bt (up to 90W) PoE auto- sensing ports,

4 x 25G SFP28 ports,

2 x 100G QSFP28 ports
48 x RJ45 10M/ 100M/ 1000Mb auto-sensing ports,

4 x 10G SFP+ ports,

2 x 100G QSFP28 ports
48 x RJ45 10M/ 100M/ 1000Mb 802.3at (up to 30W) PoE autosensing ports;

4 x 10G SFP+ ports,

2 x 100G QSFP28 ports
48 x RJ45 10M/ 100M/ 1G/ 2.5G/ 5G/ 10G auto-sensing ports,

4 x 25G SFP28 ports,

2 x 100G QSFP28 ports
48 x RJ45 10M/ 100M/ 1G/ 2.5G/ 5G/ 10G 802.3bt (up to 90W) PoE auto-sensing ports;

4 x 25G SFP28 ports,

2 x 100G QSFP28 ports
OS6 Options (with pre-installed OS6 NOS) Yes Yes Yes Yes Yes Yes Yes Yes Yes
NO-OS Options (no pre-installed NOS, recommended for use with Enterprise SONiC Distribution by Dell Technologies) No No No No No Yes No No No
OS10 Options (with pre-installed OS10 NOS) No No No No No Yes No No No
Power Supply (Watts) 320W AC 550W AC
550W DC
550W AC
550W DC
1050W AC
1300W DC
1600W AC
1300W DC
550W AC 1050W AC 550W AC
1300W DC
1600W AC
1300W DC
Dimensions 1.71 in x 11 in x 12.28 in 1.71 in x 17.09 in x 15.75 in (power supply/fan tray handle adds add’l 1.18 in)
Approximate Weight 8.44lbs / 3.83kg 13.75lbs / 6.24kg 14.25lbs / 6.46kg 15.6lbs / 7.08kg 16lbs / 7.26kg 15.4lbs / 6.99kg 16.7lbs / 7.57kg 16.1lbs / 7.3kg 17.6lbs / 7.98kg
Performance
CPU memory 4GB 4GB 4GB 4GB 4GB 4GB 4GB 4GB 4GB
SSD 8GB 8GB 8GB 8GB 8GB 32GB 8GB 8GB 8GB
Packet buffer memory 4MB 8MB 8MB 8MB 8MB 8MB 8MB 32MB 32MB
Switch fabric capacity 88Gbps 528Gbps 528Gbps 528Gbps 1080Gbps 576Gbps 576Gbps 1560Gbps 1560Gbps
Forwarding rate 122Mpps 733Mpps 733Mpps 733Mpps 1500Mpps 800Mpps 800Mpps 2167Mpps 2167Mpps
Line-rate Layer 2 switching All (non-blocking)
Line-rate Layer 3 routing All (non-blocking)
Environmental Operating Conditions
Operating temperature 32° to 113°F (0° to 45°C)
Storage temperature –40° to 158°F (–40° to 70°C)
Operating relative humidity 95%
Storage relative humidity 95%
Power Supply Efficiency 87% or better in all operating modes
Max Thermal Output (BTU/hr) 2821 686 764 3220 9344 723 5719 1637 18224
Power Consumption Max (Watts) 900W 201W 224W 944W 2740W 212W 1677W 480W 5344W
Accessories
Power cords C15 to NEMA 5-15, 1.8M (N3208PX-ON only)
C13 to NEMA 5-15, 3M (all other N3200 platforms)
C13 to C14, 2M (all other N3200 platforms)
Power shelves (optional)
  • MPS-1S Shelf, External power shelf to hold 1 PSU (any of 1050W AC, 1600W AC, 2000W AC, 1300W DC), Extends PoE budget for N3224PX-ON, N3248P-ON, N3248PXE-ON1
  • MPS-3S Shelf, External power shelf to hold up to 3 PSUs (any combination of 1050W AC or 1600W AC or 2000W AC PSUs, or up to three 1300W DC PSUs), Extends PoE budget for N3224PX-ON, N3248P-ON, N3248PXE-ON1
Optics

Transceiver, SFP, 1000BASE-T 2
Transceiver, SFP, 1000BASE-SX 2
Transceiver, SFP, 1000BASE-LX 2
Transceiver, SFP, 1000BASE-ZX 2
Transceiver, SFP+ 10GbE, USR (MMF upto 100m) 3
Transceiver, SFP+ 10GbE, SR (MMF upto 400m) 3
Transceiver, SFP+ 10GbE, LR (SMF 10 km) 3
Transceiver, SFP+ 10GbE, ER SMF 40 km) 3
Transceiver, SFP+ 10GbE, ZR (SMF 80 km) 3
Transceiver, SFP+ 10GbE, BASE-T GEN2 3
Transceiver, SFP28 25GbE, LR
Transceiver, SFP28 25GbE, SR-NOF
Transceiver, SFP28 25GbE, ESR
Transceiver, QSFP28 100GbE, Q28-100G-SR4-HG
Transceiver, QSFP28 100GbE, Q28-100G-LR4-G3

Cables 10GbE, SFP+ to SFP+, Passive DAC (0.5M, 1M, 2M, 3M, 5M, 7M) 3
10GbE, SFP+ to SFP+, Active optical (2M, 3M, 5M, 7M, 10M,15M, 20M) 3
25GbE, SFP28 to SFP28, Passive DAC (1M, 2M, 3M, 5M)
25GbE, SFP28 to SFP28, Active optical (7M, 10M,15M, 20M)
100GbE, QSFP28 to QSFP28, Passive DAC (0.5M, 1M, 2M, 3M, 5M)
Fans (spare) Fan module, IO to PSU Airflow
Fan module, PSU to IO Airflow (for N3224T-ON, N3248TE-ON, N3248X-ON only)

Physical

  • 2 integrated rear 100GbE QSFP28 stacking ports (except N3208PX-ON)
  • Out-of-band management port (10/100/1000BASE-T)
  • USB (Type A) port for configuration via USB flash drive
  • MicroUSB (Type B) console port (MicroUSB to USB connector cable included)
  • RJ45 console port with RS232 signaling (RJ-45 to female DB-9 connector cable included)
  • Auto-negotiation for speed and flow control Auto-MDI/MDIX, port mirroring
  • Flow-based port mirroring Broadcast storm control
  • Energy-Efficient Ethernet per port settings
  • Redundant variable speed fans
  • Air flow: I/O to power supply
  • Dual firmware images on-board
  • Switching engine model: Store and forward

Scaling performance

  • MAC addresses: 32K
  • Static routes: 256 (IPv4)/128 (IPv6) Dynamic routes: 256 (IPv4)
  • Link aggregation: 128 LAG groups, 144 dynamic ports per stack, 8 member ports per LAG
  • Priority queues per port: 8
  • Static routes: 1,024 (IPv4)/1,024 (IPv6)
  • Dynamic routes: 8,158 (IPv4)/4,096 (IPv6)
  • OSPF routing interfaces: 8,158
  • RIP routing interfaces: 512
  • ECMP next hops per route: 16
  • ECMP groups: 1024
  • VLAN routing interfaces: 128
  • VLANs supported: 4,094
  • Protocol-based VLANs: Supported
  • Multicast forwarding entries: 1,536 (IPv4), 512 (IPv6)
  • ARP entries: 6,144
  • NDP entries: 2,560
  • Access control lists (ACL): Supported
  • MAC and IP-based ACLs: Supported
  • Time-controlled ACLs: Supported
  • Max number of ACLs: 100
  • Max ACL rules system-wide: 3,914
  • Max rules per ACL: 1,023
  • Max ACL rules per interface (IPv4): 1,023 (ingress), 511 (egress)
  • Max ACL rules per interface (IPv6): 1,021 (ingress), 509 (egress)
  • Max VLAN interfaces with ACLs applied: 24

Regulatory, environment and other compliance

  • Safety and emissions
    • Australia/New Zealand: ACMA RCM Class A
    • Canada: ICES Class A; cUL
    • China: CCC Class A; NAL
    • Europe: CE Class A
    • Japan: VCCI Class A
    • USA: FCC Class A; NRTL UL; FDA 21 CFR 1040.10 and 1040.11
    • Eurasia Customs Union: EAC
    • Germany: GS mark
    • Product meets EMC and safety standards in many countries inclusive of USA, Canada, EU, Japan, China.
    • For more country-specific regulatory information and approvals, please see your Dell Technologies representative.
  • RoHS
    • Product meets RoHS compliance standards in many countries inclusive of USA, EU, China, and India. For more country-specific RoHS compliance information, please see your Dell Technologies representative.
    • EU WEEE
    • EU Battery Directive
    • REACH
  • Energy
    • Japan: JEL
  • Other certifications
    • N-Series products have the necessary features to support a PCI compliant network topology.

General Internet protocols

  • General Internet protocols are supported. For a detailed list, please contact your Dell Technologies representative.

General IPv4 Protocols

  • General IPv4 protocols are supported. For a detailed list, please contact your Dell Technologies representative.

General IPv6 Protocols

  • General IPv6 protocols are supported. For a detailed list, please contact your Dell Technologies representative.

IEEE compliance

  • 802.1AB LLDP
  • Dell Voice VLAN
  • Dell ISDP (inter-operates with devices running CDP)
  • 802.1D Bridging, Spanning Tree
  • 802.1p Ethernet Priority (User Provisioning and Mapping)
  • Dell Adjustable WRR and Strict Queue Scheduling
  • 802.1Q VLAN Tagging, Double VLAN Tagging, GVRP
  • 802.1S Multiple Spanning Tree (MSTP)
  • 802.1v Protocol-based VLANs
  • 802.1W Rapid Spanning Tree (RSTP)
  • Dell RSTP-Per VLAN (compatible with Cisco’s RPVST+)
  • Dell Spanning tree optional features: STP root guard, BPDU guard, BPDU filtering
  • 802.1X Network Access Control, Auto VLAN
  • 802.2 Logical Link Control
  • 802.3 10BASE-T
  • 802.3ab Gigabit Ethernet (1000BASE-T)
  • 802.3ac Frame Extensions for VLAN Tagging
  • 802.3ad Link Aggregation with LACP
  • 802.3ae 10 Gigabit Ethernet (10GBASE-X)
  • 802.3at PoE+ (N1524P and N1548P)
  • 802.3bt PoE (N3208PX-ON, N3224PX-ON, N3248PXE-ON)
  • 802.3AX LAG Load Balancing
  • Dell Multi-Chassis LAG (MLAG)
  • Dell Policy Based Forwarding
  • 802.3az Energy Efficient Ethernet (EEE)
  • 802.3u Fast Ethernet (100BASE-TX) on Management Ports
  • 802.3x Flow Control
  • 802.3z Gigabit Ethernet (1000BASE-X)
  • 802.3bz 1G/2.5G/5G/10G
  • ANSI LLDP-MED (TIA-1057)
  • Dell EqualLogic iSCSI Auto-configuration
  • MTU 9,216 bytes

Layer 3 functionality

  • 1058 RIPv1
  • 1724 RIPv2 MIB Extension
  • 1765 OSPF DB overflow
  • 1850 OSPF MIB
  • 2082 RIP-2 MD5 Auth
  • 2328 OSPFv2
  • 2338 VRRP
  • 2370 Opaque Dell Policy Based Routing
  • 2453 RIPv2
  • 2740 OSPFv3
  • 2787 VRRP MIB
  • 3101 NSSA
  • 3137 OSPF Stub Router Advert
  • 3623 Graceful Restart
  • 3768 VRRP
  • 4271 BGP
  • 5187 OSPFv3 Graceful Routing Restart

Multicast

  • 1112 IGMPv1
  • 2236 IGMPv2
  • 2365 Admin scoped IP
  • 2710 MLDv1
  • 2932 IPv4 MIB
  • 2933 IGMP MIB
  • 3810 MLDv2
  • 3973 PIM-DM
  • 4541 IGMP v1/v2/v3 Snooping and Querier
  • 5060 PIM MIB
  • 5061 PIM MIB
  • 3376 IGMPv3
  • Dell Static IP Multicast
  • Draft-ietf-pim-sm-bsr-05
  • Draft-ietf-idmr-dvmrp-v3-10 DVMRP
  • Draft-ietf-magma-igmp-proxy-06.txt IGMP/MLD Proxying
  • Draft-ietf-magma-igmpv3-and-routing-05.txt draft-ietf-idmr-dvmrp-mib-11 draft-ietf-magma-mgmd-mib-05 draft-ietf-pim-bsr-mib-06
  • IEEE 802.1ag draft 8.1 – Connectivity Fault Management (CFM)
  • IEEE 802.1p GMRP Dynamic L2 Multicast Registration

Quality of service

  • 2474 DiffServ Field
  • 2475 DiffServ Architecture
  • 2597 Assured Fwd PHB
  • Dell Port Based QoS Services (TCP/UDP) Mode
  • Dell Red/WRED
  • Dell Flow Based QoS Services
  • Dell Audio Video Bridging Mode (IPv4/ IPv6)
  • Dell UDLD
  • 2697 srTCM
  • 4115 trTCM

Network Management and Security

  • Dell L4 Trusted Mode
  • 1155 SMIv1
  • 1157 SNMPv1
  • 1212 Concise MIB Definitions
  • 1213 MIB-II
  • 1215 SNMP Traps
  • 1286 Bridge MIB
  • 1442 SMIv2
  • 1451 Manager-to-Manager MIB
  • 1492 TACACS+
  • 1493 Managed Objects for Bridges MIB
  • 1573 Evolution of Interfaces
  • 1612 DNS Resolver MIB Extensions
  • 1643 Ethernet-like MIB
  • 1757 RMON MIB
  • 1867 HTML/2.0 Forms with File Upload Extensions
  • 1901 Community-based SNMPv2
  • 1907 SNMPv2 MIB
  • 1908 Coexistence Between SNMPv1/v2
  • 2011 IP MIB
  • 2012 TCP MIB
  • 2013 UDP MIB
  • 2068 HTTP/1.1
  • 2096 IP Forwarding Table MIB
  • 2233 Interfaces Group using SMIv2
  • 2246 TLS v1
  • 2271 SNMP Framework MIB
  • 2295 Transport Content Negotiation
  • 2296 Remote Variant Selection
  • 2576 Coexistence Between SNMPv1/v2/v3
  • 2578 SMIv2
  • 2579 Textual Conventions for SMIv2
  • 2580 Conformance Statements for SMIv2
  • 2613 RMON MIB
  • 2618 RADIUS Authentication MIB
  • 2620 RADIUS Accounting MIB
  • 2665 Ethernet-like Interfaces MIB
  • 2666 Identification of Ethernet Chipsets
  • 2674 Extended Bridge MIB
  • 2737 ENTITY MIB
  • 2818 HTTP over TLS
  • 2819 RMON MIB (groups 1, 2, 3, 9)
  • 2863 Interfaces MIB
  • 2865 RADIUS
  • 2866 RADIUS Accounting
  • 2868 RADIUS Attributes for Tunnel Prot.
  • 2869 RADIUS Extensions
  • 3410 Internet Standard Mgmt. Framework
  • 3411 SNMP Management Framework
  • 3412 Message Processing and Dispatching
  • 3413 SNMP Applications
  • 3414 User-based security model
  • 3415 View-based control model
  • 3416 SNMPv2
  • 3418 SNMP MIB
  • 3577 RMON MIB
  • 3580 802.1X with RADIUS
  • 3737 Registry of RMOM MIB
  • 4086 Randomness Requirements
  • 4113 UDP MIB
  • 4251 SSHv2 Protocol
  • 4252 SSHv2 Authentication
  • 4253 SSHv2 Transport
  • 4254 SSHv2 Connection Protocol
  • 4419 SSHv2 Transport Layer Protocol
  • 4521 LDAP Extensions
  • 4716 SECSH Public Key File Format
  • 5246 TLS v1.2
  • 6101 SSL
  • Dell Enterprise MIB supporting routing features
  • draft-ietfhubmib- etherifmib- v3-00.txt (Obsoletes RFC 2665)

1 Planned in Roadmap
2 Auto-negotiation not supported, using 1G optics require manual configuration and all 4x10G SFP+ or 4x25G SFP28 ports to be set to same speed. 100M speed not supported.
3 Auto-negotiation not supported, using 10G cables or optics require manual configuration and all 4x25G SFP28 ports to be set to same speed. 100M/1G speed not supported.

Documentation:

Download the Dell EMC PowerSwitch Switch N3200 Series Datasheet (PDF).

Pricing Notes:

Dell Products
USA: FREE Ground ShippingDell EMC PowerSwitch N3208PX-ON Switch
Compact, 4 x 1/2.5/5G RJ-45 with 802.3bt Type-4 (90W) PoE, 4 x 1G RJ-45 with 802.3bt Type-4 (90W) ports
#N3208PX-ON
Contact us for Pricing!
email subscribe

Enjoy Exclusive Weekly Deals from Virtual Graffiti
