Dell Networking W-AP104 and W-AP105 Access Points
Mainstream 600 Mbps 802.11n access point for secure dual-band wireless mobility

Dell Networking W-AP104 and W-AP105 Access Points

Sorry, this product is no longer available, Please, contact us for a replacement product!

Overview:

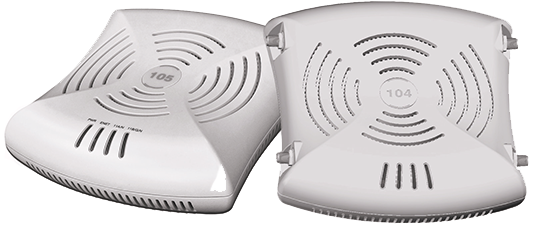

The multifunction Dell Networking W-AP104 and W-AP105 are indoor, dual-radio 802.11n access points (AP) designed for high- density deployments in offices, hospitals, schools and retail stores. These compact, high speed APs delivers wire-like performance at data rates up to 300 Mbps per radio.

The W-AP104 features two 2x2 MIMO dual-band 2.4-GHz/5-GHz radios with the interface to connect external antennas while the W-AP105 features the same configuration with integrated internal antennas. Both are built to provide years of trouble-free operation and are backed by an Extended Lifetime Warranty.

Working with Dell’s line of centralized Networking W Series Controllers, the W-AP104 and W-AP105 deliver secure, high-speed wireless network services for user mobility that works seamlessly within enterprise, branch and campus network deployments.

802.11n provides speed and reliability similar to a wired LAN. It also increases performance by utilizing techniques such as channel bonding, block acknowledgement and MIMO radios. Advanced antenna technology also increases range and reliability.

Key to ensuring wire-like performance and reliability is Adaptive Radio Management (ARM) capability, which manages the 2.4-GHz and 5-GHz radio bands to deliver maximum client performance. Adaptive Radio Management enables different 802.11 a, b,g and n wireless clients to operate on the same network at maximum possible performance through the use of band steering, airtime fairness policies between clients, and by managing channel interference that may occur between access points.

The multifunction W-AP104 and W-AP105 can be configured through the controller to provide wireless LAN (WLAN) access with part-time air monitoring, dedicated air monitoring for wireless intrusion protection, Remote AP (RAP) functionality or secure enterprise mesh. The W-AP104 and W-AP105 feature dual 100/1000 BASE-T Ethernet interfaces and operate from standard Power-over-Ethernet (PoE) sources or a 12-volt DC power supply.

Networking W-Series Access Points:

Dell Networking Products
Dell W-Series Access Points
W-Series AP224/225 802.11ac Access Points W-Series AP224/225 802.11ac Access Points
W-Series AP224 (external antenna) and W-Series AP225 (internal antenna) are 802.11ac access points, supporting the new 5GHz industry standard for gigabit wireless data rates. These purpose-built 3x3 MIMO 802.11ac access points are designed to deliver blazing fast performance that is up to three times higher than comparable 802.11n access points. Dual-radio configurations enable flexible deployments:
  • 5GHz: 3x3 MIMO for 802.11ac, delivering data rates up to 1.3Gbps
  • 2.4GHz: 3x3 MIMO for 802.11n, delivering data rates up to 450Mbps

The AP224 and AP225 each include dual GbE ports to access wired backbones and are powered by Power-over-Ethernet 802.3at (PoE+) or an optional adapter.

W-Series AP274/275 802.11ac Outdoor Access Points  W-Series AP274/275 802.11ac Outdoor Access Points
W-Series AP274/275 access points are innovative and aesthetic designs that deliver Gigabit WiFi performance to 802.11ac mobile devices. These purpose-built access points are designed to survive harsh outdoor environments, including extreme high and low temperatures as well as persistent moisture and precipitation, and are fully sealed to keep out airborne contaminants. With a maximum data rate of 1.3Gbps in the 5-GHz band and 600Mbps in the 2.4-GHz band, the AP274/275 outdoor APs support concurrent dual-radio operation.
W-Series AP155/155P Wired + Wireless Access Points  W-Series AP155/155P Wired + Wireless Access Points
Dual-band, dual-radio APs offering wire-like data rates of up to 450Mbps per radio. The AP155 and AP155P each have four ports available to the wired network and a USB port to connect to 3G and 4G networks. The W-Series AP155P has two Power-over-Ethernet (PoE)-capable LAN ports that can be used to power an external PoE-enabled device, such as an IP phone.
  • Dual-radio, concurrent dual-band access points
  • 2x2 MIMO with two spatial streams and up to 300Mbps wireless data rate in 2.4GHz
  • 3x3 MIMO with three spatial streams and up to 450Mbps wireless data rate in 5GHz
W-AP134/135 Access Points  W-AP134/135 Access Points
Enterprise-grade W-Series AP134 (external antenna) and AP135 (internal antenna) are the highest-performing W-Series 802.11n dual-radio indoor access points, designed to deliver data rates of up to 450Mbps per radio, up to 900Mbps total for denser environments.
W-Series AP114/115 Access Points  W-Series AP114/115 Access Points
W-Series AP114 (external antenna) and AP115 (internal antennas) are high-performance, dual-radio 802.11n access points designed to deliver data rates up to 450Mbps per radio, suited for medium density deployments.
 W-AP104/105 Access Points W-AP104/105 Access Points
W-Series AP104 (external antenna) and W-Series AP105 (internal antenna) are enterprise-grade dual-radio 802.11n indoor access points designed to deliver data rates of up to 300Mbps per radio, up to 600Mbps total for medium density deployments.
W-Series AP103 Access Points  W-Series AP103 Access Points
W-Series AP103 access points provide cost-effective dual-band coverage in medium-density enterprise WiFi environments while minimizing interference from cellular networks. These compact APs deliver wireless data rates up to 300Mbps per radio employing 802.11n technology with two spatial MIMO streams. The AP103 features a 2.4-GHz and a 5-GHz radio, each with 2x2:2 MIMO and two integrated omnidirectional down-tilt antennas per radio.
 Networking W-AP175 Outdoor Access Points W-AP175 Outdoor Access Points
Enterprise-grade family of mainstream dual-radio 802.11n outdoor access points designed to deliver data rates of up to 300Mbps per radio, up to 600Mbps total. Ideal for campuses, industrial parks and other harsh, outdoor open-air environments, W-Series AP175 access points can be powered via PoE, AC or DC power sources and include convenient wall and mast mounting options as well as a solar shield.
 W-AP92/93 Access Points W-AP92/93 Access Points
W-Series AP92 (external antenna) and W-Series AP93 (internal antenna) are entry-level, enterprise-grade, single-radio 802.11n indoor access points designed to deliver data rates of up to 300Mbps.
 W-AP93H Wired + Wireless Access Point W-AP93H Wired + Wireless Access Point
A special-purpose 802.11n indoor access point with built-in 4-port fast Ethernet switch designed to deliver wireless data rates of up to 300Mbps. W-Series AP93H is specifically designed to be mounted over a network wall socket. Mounting kits sold separately.
 W-AP68 Access Point W-AP68 Access Point
Designed to deliver data rates of up to 150Mbps for organizations that are looking for a basic enterprise-grade 802.11n access point.

Compare Entry Level:

Legend: S —Standard AO — Available Optional N — Not Available

W-Series Access Points Entry Level Comparision Specs
  W-AP92 /
W-AP93
W-AP93H+ W-AP103

W-AP104 /
W-AP105

W-AP175AC /
W-AP175P
Data rate 300Mbps 300Mbps 300 Mbps
2x2 MIMO
802.11n
600Mbps
(300Mbps each radio)
600Mbps
(300Mbps each radio)
Radios Dual radios:
2.4 and 5GHzband
Single radio:
2.4 or 5GHzband
Dual radio,
5-GHz and 2.4-GHz 802.11n2x2:2
Dual radios:
2.4 and 5GHzband
Dual radios:
2.4 and 5GHzband
Operating frequencies 2.4-2.5 GHz 2.4-2.5 GHz 2.4000 GHz to 2.4835 GHz
5.150 to 5.250 GHz
5.250 to 5.350 GHz
5.470 to 5.725 GHz
5.725 to 5.850 GHz
N/A N/A
Antennas W-AP92:
two RP-SMA for W-AP93 two internal omni-directional, dual-band
Two internal omni-directional, dual-band antennas Four integrated down-tilt omni-directional antennas for 2x2 MIMO with maximum antenna gain of 3.9 dBi at 2.44 GHz,
4.1 dBi at 5.2 GHz and
4.3 dBi at 5.8 GHz. Built-in antennas are optimized for horizontal ceiling mounted orientationof the AP.
W-AP104:
four RP-SMA for external 2.4 and 5GHz antennas W-AP105:
four internal omni-directional,dual-band
Four N-type interfaces (two per band) for external 2.4 and5GHz antennas
Networkinterfaces One 100/1000 Base-T Ethernet, auto- sensingMDI/MDX One 10/100/100/1000 Base-T Ethernet, auto-sensing MDI/MDX, Four 10/100Base-T, and One passive RJ-45 pass-throughinterface (2 ports) 10/100/1000 BASE-T Ethernet network interface (RJ-45); Auto-sensing link speed and MDI/MDX; 802.3az Energy Efficient Ethernet (EEE); PoE-PD: 48 Vdc (nominal) 802.3af PoE or802.3at PoE+ One 100/1000 Base-T Ethernet, auto- sensingMDI/MDX One 100/1000 Base-T Ethernet, auto- sensingMDI/MDX
Otherinterfaces Console interface(RJ45) Console interface(RJ45) DC power interface, accepts 1.7/4.0-mm center-positive circular plug with 9.5-mm length; Serial console interface (proprietary; optional adaptercable available) Console interface(RJ45) Console interface(USB)
Power over Ethernet (PoE)interfaces 48V DC 802.3af- compatible 48V DC 802.3af-compatible Power over Ethernet (PoE): 48 Vdc (nominal) 802.3af or 802.3at-compliantsource W-AP175P: 802.3at-compatible PoE input (PD)
W-AP175AC and W-AP175DC: 802.3af compatible PoEoutput (PSE)
W-AP175P: 802.3at-compatible PoE input (PD)
W-AP175AC and W-AP175DC: 802.3af compatible PoEoutput (PSE)
Power interfaces 12V DC, 1.25A 12V DC, 1.25A Direct DC source:12 Vdc nominal, +/- 5% 48V DC 802.3af-compatible 12–48V DC or100–240V AC
Power consumption 10 Watts
(maximum)
9 Watts (maximum) Max 9.5W (POE)
or 8W (DC)
12V DC, 1.25A
12.5 Watts (maximum)
18 Watts
(maximum)
Environmental Class Indoor,plenum-rated Indoor Indoor Indoor,plenum-rated Outdoor
Operating temperature 0°C to 50°C
(32°F to 122°F)
0°C to 40°C
(32°F to 104°F)
0° C to +40° C
(+32° F to +104° F)
0°C to 50°C
(32°F to 122°F)
W-IAP175P:
–30°C to +60°C
(–22°Fto +140°F)
W-IAP175AC
and W-IAP175DC:
–40°C to +55°C
(–40°F to 131°F)

Specifications:

Dell Networking W-AP104 and W-AP105 Access Points

Operating modes

  • Multiservice concurrent 802.11a/n + b/g/n WLAN
  • Can be configured to operate individually or simultaneously as:
    - 802.11a/b/g/n access point
    - Air monitor, spectrum monitor
    - Remote AP
    - Secure enterprise mesh
  • Backward compatible with 802.11a/b/g and mixed-mode 11a/b/g/n deployments

Radios

  • Multifunction, dual radio capable of 2.4-GHz and 5-GHz operation
  • Both 802.11n radios implement 2x2 MIMO with two spatial streams, providing up to 300 Mbps data rate per radio
  • Maximal ratio combining (MRC) for improved receiver performance

Wireless radio specifications

  • Supported frequency bands (country-specific restrictions apply):
    • 2.400 to 2.4835 GHz
    • 5.150 to 5.250 GHz with Dynamic Frequency Selection (DFS) capability
    • 5.250 to 5.350 GHz with Dynamic Frequency Selection (DFS) capability
    • 5.470 to 5.725 GHz with Dynamic Frequency Selection (DFS) capability
    • 5.725 to 5.850 GHz with Dynamic Frequency Selection (DFS) capability
  • Available channels: Controller-managed, dependent upon con- figured regulatory domain
  • Transmit power:
    • 2.4 GHz: Up to 23 dBm (limited by local regulatory requirements)
    • 5 GHz: Up to 23 dBm (limited by local regulatory requirements)
    • Transmit power configurable in increments of 0.5 dBm
  • Supported radio technologies:
    • 802.11b: Direct-sequence spread-spectrum (DSSS)
    • 802.11a/g/n: Orthogonal frequency division multiplexing (OFDM)
    • 802.11n: 2x2 MIMO with 2 spatial streams
  • Supported modulation types:
    • 802.11b: BPSK, QPSK, CCK
    • 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
  • Association rates (Mbps):
    • 802.11b: 1, 2, 5.5, 11
    • 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
    • 802.11n: MCS0 - MCS15 (6.5 Mbps to 300 Mbps)
    • 802.11n high-throughput (HT) support: HT 20/40
    • 802.11n packet aggregation: A-MPDU, A-MSDU

Antenna

  • W-AP104:
    • 4 x RP-SMA antenna interface connectors for external antenna support. External Antenna selection guide is available from Dell representative or downloadable from Dell.com/wireless
  • W-AP105:
    • 4 x integrated, omni-directional antennas.
    • Maximum antenna gain:
    • 2.4GHz/2.5dBi
    • 5GHz /4.0dBi

Interfaces

  • Network:
    • 1 x 10/100/1000Base-T Ethernet (RJ45), auto-sensing, MDI/MDX
  • Power:
    • 1 x DC power connector
  • Other:
    • 1 x RJ45 console interface

Power options

  • 48V DC 802.3af PoE or 802.3at PoE+
  • External AC power providing 12V DC to AP (adapter sold separately)
  • Maximum power consumption: 12.5 watts

Mounting

  • Ceiling tile rail (15/16” & 9/16” recessed or non-recessed)
  • Desk stand and wall outlet mount plate
  • Wall box mount bracket (for US single gang wall mount)
  • Solid wall stand-off

Mechanical

  • 132 mm x 135 mm x 45 mm (5.2” x 5.3” x 1.8“)
  • Weight: 300g (10.56 oz)

Certifications/Regulatory

  • Wi-Fi certified: 802.11a/b/g/n
  • FIPS/TAA certified SKU available

Product meets EMC, safety and wireless standards of over 50 countries inclusive of; USA (FCC), Canada, EU, Japan, Korea, China. For more country-specific regulatory information, and approvals, please see your Dell representative.

Minimum AOS version

  • W-AP104: 6.1.3.0
  • W-AP105: 5.0.2.0

Extended Life Warranty

Performance Table:

W-AP104 and W-AP105 RF Performance Table
  Max TX power per active TX chain (dBm) RX Sensitivity (dBm) Max TX power per active TX chain (dBm) RX Sensitivity (dBm)
  2.4 GHz 5 GHz
802.11b
1Mbps 20 -96 - -
2Mbps 20 -96 - -
5.5Mbps 20 -94 - -
11Mbps 20 -93 - -
802.11a/g
6Mbps 20 -96 20 -96
9Mbps 20 -96 20 -96
12Mbps 20 -96 20 -96
18Mbps 20 -95 20 -95
24Mbps 20 -92 20 -91
36Mbps 19 -89 19 -88
48Mbps 18 -85 18 -84
54Mbps 17 -83 17 -83
802.11n HT20
MCS0 20 -96 20 -96
MCS1 20 -95 20 -94
MCS2 20 -93 20 -92
MCS3 20 -90 20 -89
MCS4 19 -87 19 -86
MCS5 18 -82 18 -82
MCS6 17 -81 17 -80
MCS7 15 -80 15 -79
MCS8 20 -95 20 -95
MCS9 20 -93 20 -92
MCS10 20 -91 20 -90
MCS11 20 -87 20 -87
MCS12 19 -84 19 -84
MCS13 18 -81 18 -80
MCS14 17 -80 17 -78
MCS15 15 -77 15 -77
802.11n HT40
MCS0 20 -93 20 -92
MCS1 20 -93 20 -92
MCS2 20 -90 20 -89
MCS3 20 -86 20 -86
MCS4 19 -83 19 -83
MCS5 18 -79 18 -80
MCS6 17 -77 17 -77
MCS7 15 -76 15 -76
MCS8 20 -92 20 -92
MCS9 20 -89 20 -90
MCS10 20 -87 20 -87
MCS11 20 -84 20 -84
MCS12 19 -82 19 -81
MCS13 18 -76 18 -77
MCS14 17 -76 17 -75
MCS15 15 -73 15 -73

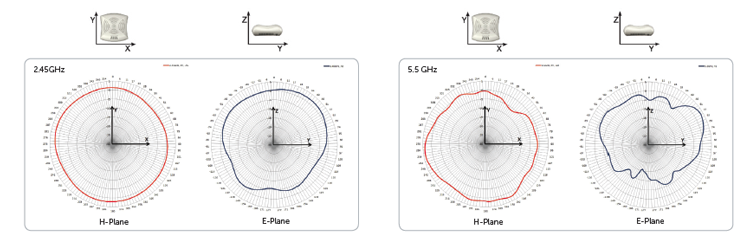

W-AP105 Antenna Pattern Plots

W-AP105 Antenna Plots

Documentation:

Download the Dell Networking W-AP104/105 Access Points Data Sheet (PDF).

Pricing Notes:

Sorry, this product is no longer available, Please, contact us for a replacement product!
