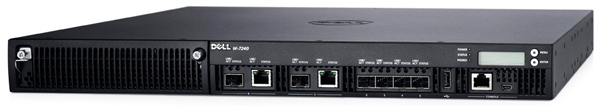

Dell Networking W-7210 Controller
Industry leading scalable modular Mobility Controller

Dell Networking W 7210 Controller

Sorry, this product is no longer available, Please, contact us for a replacement product!

Overview:

The Dell Networking W-7200 mobility controller is optimized for campuses needing high-capacity WLAN for users, devices and application delivery to ensure the best mobility experience.

With a new central processor that employs eight cores with four threads each, it's like having a total of 32 virtual CPUs. As a result, the W-7200 Series supports 32,000 mobile devices and performs stateful firewall policy enforcement at 40 Gbps – plenty of capacity and speed for BYOD and 802.11ac devices.

New levels of visibility are provided by Dell W-Series unique AppRF technology, which runs on W-7200 Series mobility controllers. With AppRF, IT can see applications by user, including top web-based applications like Facebook and Box.

The W-7200 Series also manages authentication, encryption, VPN connections, IPv4 and IPv6 Layer 3 services, Policy Enforcement Firewall™, Adaptive Radio Management™, and RFProtect™ spectrum analysis and wireless intrusion protection.

Clustering and centralized management enable the deployment of large networks with hundreds of mobility controllers with minimal staff. A master mobility controller can manage local mobility controllers, while W-AirWave network management provides enterprise-wide clarity and control through real-time monitoring, historical reporting and troubleshooting.

Architected for High Availability

The W-7200 Series includes a number of features that make it ideal for deployment in customer locations that require maximum availability.

  • Redundant power supplies: The W-7200 Series supports dual, field replaceable redundant power supplies to maintain uninterrupted network operations.
  • Hot-swappable fan tray with multiple fans: The W-7200 Series includes a field-replaceable fan tray with multiple fans, providing sufficient cooling and rapid time to repair.
  • Solid state drives for maximum reliability and uptime.
  • Two dual-media ports: 1000BASE-X or 10/100/1000BASE-T connections for high availability.

Networking W-Series Controllers:

Networking W-Series 7240 Controller

Networking W-Series 7240 Controller
Supports up to 2,048 APs and up to 32,768 users, processing up to 2 million active firewall sessions with 40Gbps stateful firewall policy enforcement. With a central processor that employs eight cores with four threads each, the W-Series 7240 offers the high density and enhanced capabilities required for large enterprise wireless LAN deployments. Optimized for 802.11ac, it features L1-L7 analytics with integrated security and app intelligence.
Networking W-Series 7220 Controller

Networking W-Series 7220 Controller
Supports up to 1,024 APs and up to 24,576 users, processing up to 2 million active firewall sessions with 40Gbps stateful firewall policy enforcement. With a central processor that employs eight cores with four threads each, the W-Series 7220 offers the high density and enhanced capabilities required for large enterprise wireless LAN deployments. Optimized for 802.11ac, it features L1-L7 analytics with integrated security and app intelligence.
Networking W-Series 7210 Controller

Networking W-Series 7210 Controller
Supports up to 512 APs and up to 16,384 users, processing up to 2 million active firewall sessions with 20Gbps stateful firewall policy enforcement. With a central processor that employs eight cores with four threads each, the W-Series 7210 offers the high density and enhanced capabilities required for large enterprise wireless LAN deployments. Optimized for 802.11ac, it features L1-L7 analytics with integrated security and app intelligence.
Networking W-6000 Controller

Networking W-6000 Controller
A scalable, modular mobility controller for corporate headquarters and large campuses, the W-6000 includes up to four hot-pluggable Networking W-6000M3 controller modules, each supporting up to 512 LAN-connected APs, 1024 remote APs and 8,192 users. A single Networking W-6000 controller chassis with four W-6000M3 controller modules can support 2048 LAN-connected APs, 4096 remote APs and 32,768 users.
Networking W-3600 Controller

Networking W-3600 Controller
A full-featured, integrated mobility access controller for medium- to large-enterprise campuses, the W-3600 can manage up to 128 LAN-connected access points and 512 remote access points, supporting up to 8,192 users.
Networking W-3400 Controller

Networking W-3400 Controller
A full-featured, integrated mobility access controller for medium- to large-enterprise campuses, the W-3400 can manage up to 64 LAN-connected APs and 256 remote APs, supporting up to 4,096 users.
Networking W-3200 Controller

Networking W-3200 Controller
Full-featured, integrated mobility access controller for medium- to large-enterprise campuses, the W-3200 can manage up to 32 LAN-connected access points and 128 remote access points, supporting up to 2,048 users.
Networking W-650 Small Business and Branch Office Controller

Networking W-650 Small Business and Branch Office Controller
A compact, all-in-one small office or branch office controller, the W-650 support up to 16 LAN-connected APs, 64 remote APs and 512 users. It also includes PoE sourcing ports, print-server and NAS capabilities to enable local network printing and mass storage.
Networking W-620 Small Business and Branch Office Controller

Networking W-620 Small Business and Branch Office Controller
A compact, all-in-one small office or branch office controller, the W-620 supports up to 8 LAN-connected APs, 32 remote APs and 256 users. It also includes PoE sourcing ports, print-server and NAS capabilities to enable local network printing and mass storage.

Product Comparison:

Legend: S —Standard AO — Available Optional N — Not Available

  W 7210 W 7220 W 7240
Max LAN-connected APs 512 1,024 2,048
Max Remote Access Points 512 1,024 2,048
Max Users 16,384 24,576 32,768
Firewall throughput 20 Gbps 40 Gbps 40 Gbps
Maximum VLANs 4,094 4,094 4,094
GbE Ports (GBIC or SFP) N/A N/A N/A
10/100/1000Base-T Ports (auto-neg) 2 (combo) 2 (combo) 2 (combo)
10GbE Ports 4 SFP+ 4 SFP+ 4 SFP+
Power-over-Ethernet ports (802.3af/802.3at) N/A N/A N/A
USB ports for 3G/4G failover None None None
Form factor/footprint 1RU 1RU 1RU
Active firewall sessions 2,015,291 2,015,291 2,015,291
Concurrent GRE Tunnels (System BSSIDs) 8,192 16,384 32,768
Concurrent Tunneled Ports 8,192 12,288 16,384
Concurrent IPSec sessions 16,384 24,578 32,768
Concurrent SSL Fallback Sessions 8,192 8,192 8,192
Encrypted throughput (3DES, AES-CBC) 10 Gbps 30 Gbps 40 Gbps
Encrypted throughput (AES-CCM) 6 Gbps 20 Gbps 40 Gbps
Redundant power and fans Yes Yes Yes
Max power consumption 110 watts 125 watts 165 watts

Optics available:
SFP-LX, SFP-SX, SFP-TX, XFP-LR and XFP-SR

Encryption types:
WEP, TKIP, DES, AES-CCMP, 3DES, AES-CBC, xSec

Authentication types:
WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, 802.1X, MAC address, captive portal

Management:
Dell AirWave Management Suite or Dell OpenManage Network Manager. Also supports SNMP, web, CLI using SSH, Telnet and console port

Hardware and software warranty:
One year hardware, 90 day software

Optional Dell services:
Dell offers a variety of services ranging from product support to installation and complete IT outsourcing.

Guest access/BYOD, management and VPN:
AirWave Wireless Management System (AWMS): Use Dell’s multi-vendor network management software for a consolidated view of the RF environment, controllers, APs, and the wired infrastructure, with an intuitive user interface. AirWave can manage all Dell W-Series wireless products and provide visibility and troubleshooting for your existing vendor networks

Virtual Intranet Access (VIA): Create a secure VPN for remote users that intelligently configures connection settings on their mobile device and transparently authenticates without complicated logins.ClearPass: Trust this highly integrated access management solution for all things BYOD. The Dell ClearPass device connects to your existing network to securely onboard devices, admit users, display usage, perform health assessments and manage policies while maintaining appropriate security and service levels. Its self-registration portal frees your IT staff from the manual setup process. ClearPass models are designed to accommodate from 500 to 25,000 concurrent users/devices.

Specifications:

Interfaces and indicators

  • Four 10GBASE-X (SFP+) ports
  • Two dual-media ports (1000BASE-X or 10/100/1000BASE-T)
  • One USB 2.0
  • Console (RS-232) RJ-45 or mini-USB
  • LINK/ACT and status LEDs
  • Management/status LEDs
  • LCD panel and navigation buttons
  • Expansion slot (reserved for future use)

Dimensions

  • H) 4.4 cm x (W) 44.5 cm x (D) 44.5 cm (1.75" x 17.5" x 17.5")
  • Weight (with one AC power supply installed) 7.45 kg (16.43 lbs)

Environmental

  • Operating temperature range: 0° C to 40° C
  • Operating humidity: 5% to 95% non-condensing
  • Storage temperature range: -40° C to 70° C
  • Storage humidity: 5% to 95%, non-condensing
  • Operating altitude: 10,000 feet
  • Acoustic noise2 (with AC power supply):
    • 7210: 46.9 dBA)
    • 7220: 46.9 dBA
    • 7240: 54.7 dBA
  • 2Sound power per ETSI 300 753 in accordance with ISO 7779

Power Supply Specifications

  • 350-watt AC power supply
    • AC input voltage: 100 VAC to 240 VAC
    • AC input current: 5-2.5A
    • AC input frequency: 50-60 Hz
  • Weight: 2.8 lbs (1.3 kg)
  • Maximum power consumption
    • 7210: 110 watts
    • 7220: 125 watts
    • 7240: 165 watts

Regulatory and Safety Compliance

  • FCC Part 15 Class A CE
  • Industry Canada Class A
  • VCCI Class A (Japan)
  • EN 55022 Class A (CISPR 22 Class A), EN 61000-3,
  • EN 61000-4-2, EN 61000-4-3, EN 61000-4-4,
  • EN 61000-4-5, EN 61000-4- 6, EN 61000-4-8,
  • EN 61000-4-11, EN 55024, AS/NZS 3548
  • UL 60950, EN60950
  • CAN/CSA 22.2 #60950
  • CE mark, cTUVus, CB, C-tick, Anatel, NOM, MIC

Warranty

  • Hardware: 1 year parts/labor*
  • Software: 90 days*
    * Extended with support contract

Software

  • Dell W-Series ArubaOS™ 6.2 and later

Documentation:

Download the Dell Networking W-7200 Controller Series Spec Sheet (PDF).
