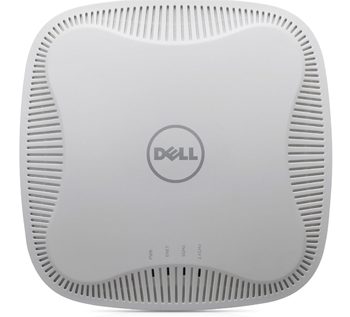

Dell Networking W-IAP103 Instant Access Points
Cost-effective dual-band coverage in low-density enterprise Wi-Fi environments

Dell Networking W-IAP103 Instant Access Points

Sorry, this product is no longer available, Please, contact us for a replacement product!

Overview:

Multifunctional and affordable Dell Networking 103 Series wireless access points (APs) maximize mobile device performance in low-density Wi-Fi environments while minimizing interference from cellular networks. These compact and cost-effective APs deliver wireless data rates up to 300 Mbps per radio employing 802.11n technology with two spatial MIMO streams.

The W-AP103 and Instant W-IAP103 models feature a 2.4GHz and a 5GHz radio, each with 2x2:2 MIMO and two integrated omni-directional downtilt antennas per radio.

Advanced Cellular Coexistence (ACC)

Dell ACC feature enables WLANs to perform at peak efficiency by minimizing interference from 3G/4G LTE networks, distributed antenna systems and commercial small cell/femtocell equipment.

Wi-Fi client optimization

To eliminate sticky client behavior while users roam, the Dell Networking 103 Series APs feature Dell's patented ClientMatch™ technology, which continuously gathers session performance metrics from mobile devices.

If a mobile device moves away from an AP or if RF interference impedes performance, ClientMatch automatically steers the device to a better AP.

Quality of service for Lync

Dell Networking 103 Series APs additionally support priority handling and policy enforcement for individual Microsoft Lync media on the same device, including encrypted videoconferencing, voice, chat and desktop sharing.

Best-in-class RF management

All Dell Networking APs include Adaptive Radio Management™ technology, which is essential to creating the most reliable, high-performance WLANs. ARM™ manages the 2.4GHz and 5GHz radio bands to optimize Wi-Fi client performance and ensures that APs stay clear of RF interference.

Dell Networking 103 Series APs can be configured to provide part-time or dedicated air monitoring for spectrum analysis and wireless intrusion protection, VPN tunnels to extend remote locations to corporate resources, and wireless mesh connections where Ethernet drops are not available.

Choose your operating mode

Dell Networking 103 Series APs offer a choice of operating modes to meet your unique management and deployment requirements.

Controller-managed mode: When managed by Dell Networking W-Series Mobility Controllers, the W-AP103 offers centralized configuration, data encryption, policy enforcement and network services, as well as distributed and centralized traffic forwarding. Please refer to the Dell Networking Mobility Controller data sheets for more details.

Instant™ mode: A single W-IAP103 automatically distributes the network configuration to other Instant APs (IAPs) in the WLAN. Simply power-up one IAP, configure it over the air, and plug in the other IAPs – the entire process takes about five minutes.

If WLAN and network requirements change, a built-in migration path allows Dell Networking Instant APs to become part of a WLAN that is centrally managed by a Mobility Controller.

Advanced Features

Spectrum analysis

  • Capable of part-time or dedicated air monitoring, the spectrum analyzer remotely scans the 2.4GHz and 5GHz radio bands to identify sources of RF interference

Security

  • With an OpenDNS service subscription, Dell Networking Instant APs deliver integrated web filtering, malware and botnet protection to every device connected to the WLAN
  • Integrated Trusted Platform Module (TPM) for secure storage of credentials and keys
  • SecureJack-capable for secure tunneling of wired Ethernet traffic

Networking W-Series Instant Access Points:

Dell Networking Products
Dell W-Series Instant Access Points
W-Series IAP224/225 802.11ac Access Points W-Series IAP224/225 802.11ac Access Points
W-Series IAP224 (external antenna) and W-Series IAP225 (internal antenna) are 802.11ac access points, supporting the new 5GHz industry standard for gigabit wireless data rates. These purpose-built 3x3 MIMO 802.11ac access points are designed to deliver blazing fast performance that is up to three times higher than comparable 802.11n access points. Dual-radio configurations enable flexible deployments:
  • 5GHz: 3x3 MIMO for 802.11ac, delivering data rates up to 1.3Gbps
  • 2.4GHz: 3x3 MIMO for 802.11n, delivering data rates up to 450Mbps

The IAP224 and IAP225 each include dual GbE ports to access wired backbones and are powered by Power-over-Ethernet 802.3at (PoE+) or an optional adapter.
W-Series IAP274/275 802.11ac Outdoor Instant Access Points W-Series IAP274/275 802.11ac Outdoor Instant Access Points
W-Series IAP274/275 instant access points (IAPs) are innovative and aesthetic designs that deliver Gigabit WiFi performance to 802.11ac mobile devices. These purpose-built access points are designed to survive harsh outdoor environments, including extreme high and low temperatures as well as persistent moisture and precipitation, and are fully sealed to keep out airborne contaminants. With a maximum data rate of 1.3Gbps in the 5-GHz band and 600Mbps in the 2.4-GHz band, the IAP274/275 outdoor IAPs support concurrent dual-radio operation.
W-Series IAP134/135 Instant Access Points W-Series IAP134/135 Instant Access Points
Enterprise-grade W-Series IAP134 (external antenna) and IAP135 (internal are the highest-performing W-Series 802.11n dual-radio indoor access points, designed to deliver data rates of up to 450Mbps per radio, up to 900Mbps total for denser environments.
W-Series IAP114/115 Instant Access Points  W-Series IAP114/115 Instant Access Points
W-Series IAP114 (external antenna) and IAP115 (internal antennas) high-performance, dual-radio 802.11n access points designed to deliver data rates up to 450Mbps per radio, suited for medium-density deployments.
W-Series IAP 108/109 Wired + Wireless Instant Access Points W-Series IAP 108/109 Wired + Wireless Instant Access Points
Multifunctional dual-radio W-Series IAP 108 (connecters for external antenna) and W-Series IAP 109 (four integrated antennas) are 802.11abgn, 2x2:2 MIMO access points with instant or remote AP modes for wireless and wired networking in large deployments. With 300Mbps wireless data rate per radio, each IAP features:
  • 10/100/1000BASE-T uplink port
  • 10/100BASE-T local port
  • USB port to connect to 3G and 4G networks
  • Desktop form factor with optional wall/ceiling-mount support
W-Series IAP104/105 Instant Access Points W-Series IAP104/105 Instant Access Points
W-Series IAP104 (external antenna) and W-Series IAP105 (internal antenna) are enterprise-grade dual-radio 802.11n indoor access points designed to deliver data rates of up to 300Mbps per radio, up to 600Mbps total for medium density deployments.
W-Series IAP103 Instant Access Points W-Series IAP103 Instant Access Points
 W-Series I AP103 instant access points (IAPs) provide cost - effective dual-band coverage in medium-density enterprise WiFi environments while minimizing interference from cellular networks. These compact APs deliver wireless data rates up to 300Mbps per radio employing 802.11n technology with two spatial MIMO streams. The I AP103 features a 2.4-GHz and a 5-GHz radio, each with 2x2:2 MIMO and two integrated omnidirectional down-tilt antennas per radio.
W-Series IAP175 Outdoor Instant Access Points W-Series IAP175 Outdoor Instant Access Points
Enterprise-grade family of mainstream dual-radio 802.11n outdoor access points designed to deliver data rates of up to 300Mbps per radio, up to 600Mbps total. Ideal for campuses, industrial parks and other harsh, outdoor open-air environments, W-Series IAP175 instant access points can be powered via PoE, AC or DC power sources and include convenient wall and mast mounting options as well as a solar shield.

Enterprise-grade portable or desktop 802.11n indoor access points that offer data rates of up to 300Mbps.
W-Series IAP92/93 Instant Access Points W-Series IAP92/93 Instant Access Points
W-Series IAP92 (external antenna) and W-Series IAP93 (internal antenna) are entry-level, enterprise-grade, single-radio 802.11n indoor access points designed to deliver data rates of up to 300Mbps.
W-Series IAP3WN/IAP3WNP Wired + Wireless Instant Access Points  W-Series IAP3WN/IAP3WNP Wired + Wireless Instant Access Points
Enterprise-grade portable or desktop 802.11n indoor access points that offer data rates of up to 300Mbps.

W-Series IAP3WN features:
  • Two 10/100Mbps LAN ports
  • One 10/100/1000Mbps WAN port
  • One USB port to connect to external cellular modem
W-Series IAP3WNP has one PoE-capable LAN port that can be used to power an external PoE-enabled device, such as an IP phone.
W-Series IAP155/155P Wired + Wireless Instant Access Points

W-Series IAP155/155P Wired + Wireless Instant Access Points
Dual-band, dual-radio IAPs offering wire-like data rates of up to 450Mbps per radio with instant or remote AP-mode options. The IAP155 and IAP155P each have four ports available to the wired network and a USB port to connect to 3G and 4G networks. The W-Series IAP155P has two Power-over-Ethernet (PoE)-capable LAN ports that can be used to power an external PoE-enabled device, such as an IP phone.

  • Dual-radio, concurrent dual-band access points
  • 2x2 MIMO with two spatial streams and up to 300Mbps wireless data rate in 2.4GHz
  • 3x3 MIMO with three spatial streams and up to 450Mbps wireless data rate in 5GHz

Dell PowerConnect Instant Access Point (IAPs) eliminate the need for an external controller and make it easier to set up and manage enterprise-grade wireless LAN (WLAN) while delivering the affordability and simplicity of an entry-level Wi-Fi network.

Ease of deployment

Networking W-IAP is designed to be up and running in minutes. From a laptop, simply connect wirelessly to perform over-the-air provisioning in a few easy steps. To expand the network, simply add more Networking W-IAPs—configuration is automatically applied to the new IAPs.

Enterprise features

The Virtual Controller technology integrated within a Networking W-IAP delivers enterprise-grade capabilities such as AP auto discovery, 802.1x authentication, role-and device-based policy enforcement, rogue detection and Adaptive Radio Management (ARM) to optimize Wi-Fi client behavior.

Management and visibility

Networking W-IAP includes a built-in web interface to manage IAP based WLAN network. Multiple Networking W-IAP networks can be securely and centrally managed by Dell Networking W-Series AirWave Wireless Management Suite, allowing groups of W-IAPs to operate in hundreds of remote locations. With Dell Networking W-Series AirWave, IT has real-time visibility into users, mobile devices and wireless and wired network status from a single management console.

In addition, Dell also offers the OpenManage Network Manager 5.0 (OMNM 5.0) management software that is an easy-to-use, web-based management interface tool that can be customized. It delivers support for the full line of Dell Networking products, including Force10, PowerConnect, & W-Series wireless devices and offers enhanced features for Traffic flow analysis, Deployment, Monitoring, and Management. OMNM 5.0 comes with ten free licenses. Each local IAP based network, regardless of number of IAP’s in network, is considered as one, leaving customer up to 9 licenses to manage other devices.

Investment protection

As WLAN requirements expand, Networking W-IAP can be converted via firmware as an 802.11n campus AP and migrate to a centralized Mobility Controller architecture.

IAP vs. Controller based AP: Key High Level Differences
Features Instant Based Architecture Controller Based Architecture
Mobility and Roaming Mobility across Layer-2 network Mobility supported across Layer-2 and Layer-3 network
Scalability

Bounded by layer-2 network design best practices

Use AirWave to manage multiple IAP networks

 Thousands of APs
Security Decrypts traffic at the IAP Decrypts traffic at the central controller for applications that require this
VPN Termination Capability No Yes, Controller can be a VPN concentrator/ termination point
FIPS, NSA Suite B support. May be required by US Government/ Military. No Yes

Compare Entry Level:

Legend: S —Standard AO — Available Optional N — Not Available

W-Series Instant Access Points Entry Level Comparision Specs
  W-IAP3WN /
W-IAP3WNP		 W-IAP92 /
W-IAP93		 W-IAP103 W-IAP104 /
W-IAP105		 W-IAP175AC / W-IAP175P
Data rate 300Mbps 300Mbps 300 Mbps
2x2 MIMO
802.11n		 600Mbps (300Mbps each radio) 600Mbps (300Mbps each radio)
Radios Single radio:
2.4 or 5GHz band		 Dual radios:
2.4 and 5GHz band		 Dual radio, 5-GHz and 2.4-GHz 802.11n 2x2:2 Dual radios:
2.4 and 5GHz band		 Dual radios:
2.4 and 5GHz band
Operating frequencies 2.4-2.5 GHz 2.4-2.5 GHz 2.4000 GHz to 2.4835 GHz
5.150 to 5.250 GHz
5.250 to 5.350 GHz
5.470 to 5.725 GHz
5.725 to 5.850 GHz		 N/A N/A
Antennas Both models have two internal omni-directional, dual-band antennas. W-AP92: two RP-SMA for W-AP93 two internal omni-directional, dual-band Four integrated down-tilt omni-directional antennas for 2x2 MIMO with maximum antenna gain of 3.9 dBi at 2.44 GHz, 4.1 dBi at 5.2 GHz and 4.3 dBi at 5.8 GHz. Built-in antennas are optimized for horizontal ceiling mounted orientation of the IAP. W-AP104: four RP-SMA for external 2.4 and 5GHz antennas W-AP105: four internal omni-directional, dual-band Four N-type interfaces (two per band) for external 2.4 and 5GHz antennas
Network interfaces Three RJ45 ports 10/100Base-T Ethernet,  Auto-sensing MDI/MDX and one USB port for connecting a cellular modem One 100/1000Base-T Ethernet, auto- sensing MDI/MDX 10/100/1000BASE-T Ethernet network interface (RJ-45); Auto-sensing link speed and MDI/MDX; 802.3az Energy Efficient Ethernet (EEE); PoE-PD: 48 Vdc (nominal) 802.3af PoE or 802.3at PoE+ One 100/1000Base-T Ethernet, auto- sensing MDI/MDX One 100/1000Base-T Ethernet, auto- sensing MDI/MDX
Other interfaces Console interface (custom) Console interface (RJ45) DC power interface, accepts 1.7/4.0-mm center-positive circular plug with 9.5-mm length; Serial console interface (proprietary; optional adapter cable available) Console interface (RJ45) Console interface (USB)
Power over Ethernet (PoE) interfaces W-IAP3WN: 802.3af PoE (15.4W) on the E2 port 48V DC 802.3af-compatible Power over Ethernet (PoE): 48 Vdc (nominal) 802.3af or 802.3at-compliant source W-AP175P: 802.3at-compatible PoE input (PD)
W-AP175AC and W-AP175DC: 802.3af compatible PoE output (PSE)		 W-AP175P: 802.3at-compatible PoE input (PD)
W-AP175AC and W-AP175DC: 802.3af compatible PoE output (PSE)
Power interfaces W-IAP3WN: 12V DC, 1.25A
W-IAP3WNP: 48V DC, 0.75A
W-IAP3WN: 100–240V, 0.5A
W-IAP3WNP: 100–240V, 0.75A		 12V DC, 1.25A Direct DC source: 12 Vdc nominal, +/- 5% 48V DC 802.3af-compatible 12–48V DC or 100–240V AC
Power consumption W-IAP3WN: 4 watts/6.5 watts
W-IAP3WNP: 5.5, 8, or 26 watts		 10 Watts (maximum) Max 9.5W (POE) or 8W (DC) 12V DC, 1.25A
12.5 Watts (maximum)		 18 Watts (maximum)
Environmental Class Indoor Indoor, plenum-rated Indoor Indoor, plenum-rated Outdoor
Operating temperature 0°C to +40°C
(32°F to 104°F)		 0°C to 50°C
(32°F to 122°F)		 0° C to +40° C
(+32° F to +104° F)		 0°C to 50°C
(32°F to 122°F)		 W-IAP175P: –30°C to +60°C (–22°F to +140°F)
W-IAP175AC and W-IAP175DC:
–40°C to +55°C (–40°F to 131°F)

Specifications:

Dell Networking W-IAP103 Instant Access Points

Operating modes

  • 802.11a/b/g/n Instant AP
  • 802.11a/b/g/n Controller-managed AP
  • Air monitor (AM) for wireless IDS, rogue detection and containment
  • Spectrum analyzer
  • Secure enterprise mesh
  • Remote AP (RAP) when used with a Controller

Wireless radio specifications

  • AP type: Indoor, dual radio, 5GHz and 2.4GHz 802.11n 2x2:2
  • Software-configurable dual radio supports 5GHz (Radio 0) and 2.4GHz (Radio 1)
  • 2x2 MIMO with two spatial streams and up to 300 Mbps wireless data rate
  • Supported frequency bands (country-specific restrictions apply):
    • 2.4000 to 2.4835GHz
    • 5.150 to 5.250GHz
    • 5.250 to 5.350GHz
    • 5.470 to 5.725GHz
    • 5.725 to 5.850GHz
  • Available channels: Dependent on configured regulatory domain
  • Dynamic frequency selection (DFS) optimizes the use of available RF spectrum
  • Supported radio technologies:
    • 802.11b: Direct-sequence spread-spectrum (DSSS)
    • 802.11a/g/n: Orthogonal frequency-division multiplexing (OFDM)
  • Supported modulation types:
    • 802.11b: BPSK, QPSK, CCK
    • 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
  • Transmit power: Configurable in increments of 0.5 dBm
  • Maximum (aggregate, conducted total) transmit power (limited by local regulatory requirements):
    • 2.4GHz band: +21 dBm (18 dBm per chain)
    • 5GHz band: +21 dBm (18 dBm per chain)
  • Advanced Cellular Coexistence (ACC) minimizes interference from cellular networks
  • Maximum ratio combining (MRC) for improved receiver performance
  • Cyclic delay/shift diversity (CDD/CSD) for improved downlink RF performance
  • Short guard interval for 20-MHz and 40-MHz channels
  • Space-time block coding (STBC) for increased range and improved reception
  • Low-density parity check (LDPC) for high-efficiency error correction and increased throughput
  • Supported data rates (Mbps):
    • 802.11b: 1, 2, 5.5, 11
    • 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
    • 802.11n: 6.5 to 300 (MCS0 to MCS15)
    • 802.11n high-throughput (HT) support: HT 20/40
    • 802.11n packet aggregation: A-MPDU, A-MSDU

Power

  • Maximum power consumption: 9.5W (POE) or 8W (DC)
  • Power sources sold separately
  • Direct DC source: 12 Vdc nominal, +/- 5%
  • Power over Ethernet (PoE): 48 Vdc (nominal) 802.3af or 802.3at-compliant source

Antennas

  • Four integrated down-tilt omni-directional antennas for 2x2 MIMO with maximum antenna gain of 3.9 dBi at 2.44GHz, 4.1 dBi at 5.2GHz and 4.3 dBi at 5.8GHz. Built-in antennas are optimized for horizontal ceiling mounted orientation of the AP.

Other interfaces

  • 10/100/1000BASE-T Ethernet network interface (RJ-45)
    • Auto-sensing link speed and MDI/MDX
    • 802.3az Energy Efficient Ethernet (EEE)
    • PoE-PD: 48 Vdc (nominal) 802.3af PoE or 802.3at PoE+
  • DC power interface, accepts 1.7/4.0-mm centerpositive circular plug with 9.5-mm length
  • Serial console interface (proprietary; optional adapter cable available)
  • Visual indicators (LEDs):
    • Power/system status
    • Ethernet link status (ENET)
    • Radio status (two; RAD0, RAD1)
  • Kensington security slot
  • Reset button

Mounting

  • Included with AP:
    • Mounting brackets (2) for attaching to 9/16-inch or 15/16-inch T-bar drop-tile ceiling
  • Spare mounting kit:
    • AP-220-MNT-C1: AP mounting kit contains two ceiling-grid rail adapters for flat rails
  • Optional mounting kits:
    • AP-220-MNT-C2: AP mounting kit contains two ceiling-grid rail adapters for Interlude and Silhouette style rails
    • AP-220-MNT-W1: AP mounting kit contains one basic flat-surface wall/ceiling mounting bracket

Mechanical

  • Dimensions/weight (unit, excluding mounting accessories):
    • 150 mm (W) x 150 mm (D) x 41.5 mm (H)
    • 5.9" (W) x 5.9" (D) x 1.63" (H)
    • 300 g (0.66 lbs)
  • Dimensions/weight (shipping):
    • 192 mm (W) x 178 mm (D) x 68 mm (H)
    • 7.6" (W) x 7.0" (D) x 2.68" (H)
    • 500 g (1.10 lbs)

Environmental

  • Operating:
    • Temperature: 0° C to +40° C (+32° F to +104° F)
    • Humidity: 5% to 95% non-condensing
  • Storage and transportation:
    • Temperature: -40° C to +70° C (-40° F to +158° F)

Regulatory

  • FCC/Industry of Canada
  • CE Marked
  • R&TTE Directive 1995/5/EC
  • Low Voltage Directive 72/23/EEC
  • EN 300 328
  • EN 301 489
  • EN 301 893
  • UL/IEC/EN 60950
  • EN 60601-1-1 and EN 60601-1-2

Regulatory model number

  • W-AP103 and W-IAP103: APIN0103

Certifications

  • CB Scheme Safety, cTUVus
  • Wi-Fi Alliance (WFA) certified 802.11a/b/g/n

Warranty

  • Extended lifetime warranty

Minimum operating system software versions

  • AOS 6.4.0.1
  • InstantOS 4.1.0.0

Performance Table:

W-IAP103 RF Performance Table
  Maximum transmit power (dBm)
per transmit chain		 Receiver sensitivity (dBm)
per receive chain
802.11b 2.4GHz
1Mbps 18 -93
11Mbps 18 -91
802.11g 2.4GHz
6Mbps 18 -88
54Mbps 16 -76
802.11n HT20 2.4GHz
MCS0/8/16 18 -88
MCS7/15/23 14 -73
802.11n HT40 2.4GHz
MCS0/8/16 18 -86
MCS7/15/23 14 -70
802.11a 5GHz
6 Mbps 18 -92
54 Mbps 16 -76
802.11n HT20 5GHz
MCS0/8/16 18 -92
MCS7/15/23 14 -73
802.11n HT40 5GHz
MCS0/8/16 18 -89
MCS7/15/23 14 -69

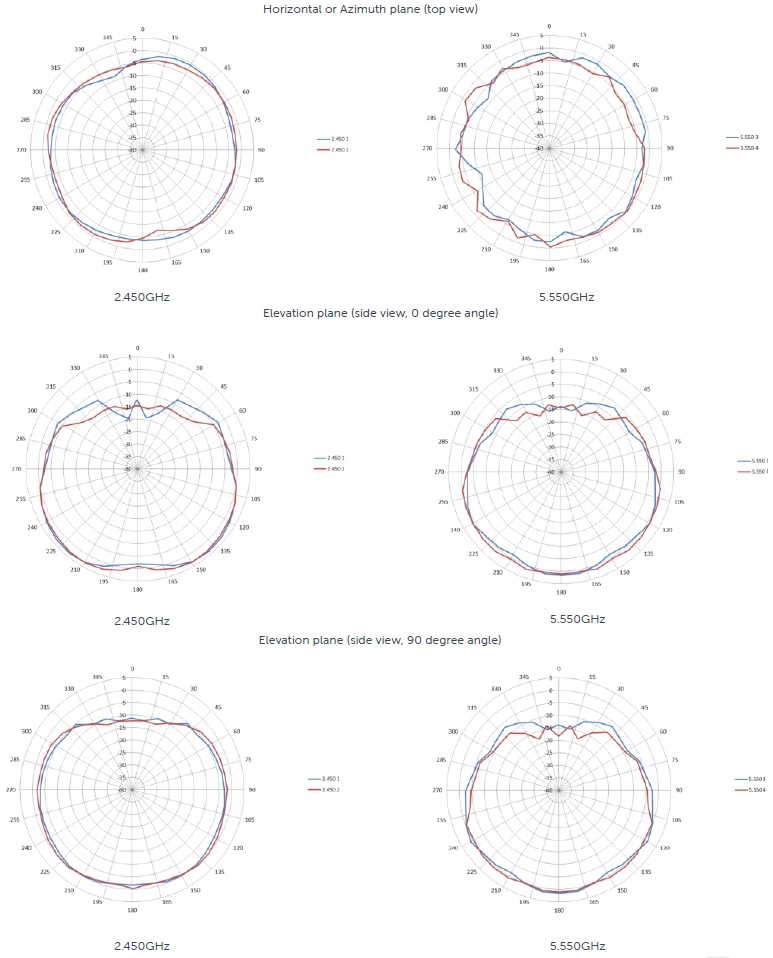

W-IAP103 Antenna Pattern Plots

W-IAP103 Antenna Pattern Plots

Pricing Notes:

Sorry, this product is no longer available, Please, contact us for a replacement product!
