Dell Networking W-IAP134/135 Instant Access Point
WiFi without a dedicated external controller

Dell Networking W-IAP134/135 Instant Access Point

Sorry, this product is no longer available, Please, contact us for a replacement product!

Overview:

Dell Networking W-IAP134 and W-IAP135 are 802.11n based instant access points (IAPs) that delivers enterprise grade Wi-Fi network with affordability and simplicity of an entry level Wi-Fi network.

The W-IAP134 features two 3x3 MIMO dual-band 2.4-GHz/5-GHz radios with the interface to connect external antennas while the W-IAP135 features the same radios with integrated internal antennas. Both delivers data rate of 450Mbit/s per radio and are built to provide years of trouble-free operation and are backed by a Extended Lifetime Warranty.

Virtual controller technology

The virtual controller technology in Networking W-IAP134/135 delivers enterprise grade controller capabilities without needing a separate access point controller. The virtual controller in a single IAP is capable of controlling multiple number of other IAPs in a network that are either local or dispersed across multiple locations. Like a dedicated controller an IAP is able to perform key tasks such as AP auto discovery, 802.1X authentication, role- and device-based policy enforcement, rogue detection as well as specialized Adaptive Radio Management (ARM) that optimizes Wi-Fi client behavior by making sure that IAPs stay clear of RF interference. When multiple IAPs are connected together, a single IAP acts as a primary virtual controller. In the event of primary virtual controller failure, another W-Series IAP in a chain automatically takes on the role with no disruption to services. Scalability of IAP network is bounded by Layer-2 network design best practices. However, for W-IAP92/93 based networks the maximum limit is sixteen.

Ease of deployment

Networking W-IAP is designed to be up and running in minutes. From a laptop, simply connect wirelessly to perform over-the-air provisioning in quick easy steps. To expand the network, simply add more Networking W-IAPs—configuration is automatically uploaded to new units. You can dedicate one radio in a dual-radio W-IAPs to form a wireless mesh type of network and eliminate cabling between W-IAPs.

Management and visibility

Multiple Networking W-IAP networks can be securely and centrally managed by Dell Networking W-Series AirWave software management suite, allowing W-IAPs to operate in hundreds of remote locations. With Dell Networking W-Series AirWave, IT has real-time visibility into users, mobile devices, Wired and Wireless LANs infrastructure all from a single management console.

In addition, Dell also offers the OpenManage Network Manager 5.0 (OMNM 5.0) management software that is an easy-to-use, web-based management interface tool that can be customized. OMNM 5.0 delivers support for the full line of Dell Networking products, including Force10, PowerConnect and W-Series wireless devices and offers enhanced features for traffic flow analysis, deployment, monitoring, and management. OMNM 5.0 comes with ten free licenses. Each IAP based network uses one license, you can use remaining nine licenses to use for your other devices.

Investment protection

As WLAN requirements expand, Networking W-IAP can be re-imaged as an 802.11n campus AP and migrate to a centralized Mobility Controller architecture capable of supporting hundreds and thousands of APs. Firmware to covert IAP to campus AP is available upon request. In addition to providing WLAN access, campus APs in a centralized, controller architecture can provide wireless intrusion protection and powerful spectrum analysis capabilities.

W-Series Instant Access Points:

Dell PowerConnect Products
Dell W-Series Instant Access Points
W-Series IAP224/225 802.11ac Access Points W-Series IAP224/225 802.11ac Access Points
W-Series IAP224 (external antenna) and W-Series IAP225 (internal antenna) are 802.11ac access points, supporting the new 5GHz industry standard for gigabit wireless data rates. These purpose-built 3x3 MIMO 802.11ac access points are designed to deliver blazing fast performance that is up to three times higher than comparable 802.11n access points. Dual-radio configurations enable flexible deployments:
  • 5GHz: 3x3 MIMO for 802.11ac, delivering data rates up to 1.3Gbps
  • 2.4GHz: 3x3 MIMO for 802.11n, delivering data rates up to 450Mbps

The IAP224 and IAP225 each include dual GbE ports to access wired backbones and are powered by Power-over-Ethernet 802.3at (PoE+) or an optional adapter.

W-Series IAP274/275 802.11ac Outdoor Instant Access Points W-Series IAP274/275 802.11ac Outdoor Instant Access Points
W-Series IAP274/275 instant access points (IAPs) are innovative and aesthetic designs that deliver Gigabit WiFi performance to 802.11ac mobile devices. These purpose-built access points are designed to survive harsh outdoor environments, including extreme high and low temperatures as well as persistent moisture and precipitation, and are fully sealed to keep out airborne contaminants. With a maximum data rate of 1.3Gbps in the 5-GHz band and 600Mbps in the 2.4-GHz band, the IAP274/275 outdoor IAPs support concurrent dual-radio operation.
W-Series IAP134/135 Instant Access Points W-Series IAP134/135 Instant Access Points
Enterprise-grade W-Series IAP134 (external antenna) and IAP135 (internal are the highest-performing W-Series 802.11n dual-radio indoor access points, designed to deliver data rates of up to 450Mbps per radio, up to 900Mbps total for denser environments.
W-Series IAP114/115 Instant Access Points  W-Series IAP114/115 Instant Access Points
W-Series IAP114 (external antenna) and IAP115 (internal antennas) high-performance, dual-radio 802.11n access points designed to deliver data rates up to 450Mbps per radio, suited for medium-density deployments.
W-Series IAP 108/109 Wired + Wireless Instant Access Points W-Series IAP 108/109 Wired + Wireless Instant Access Points
Multifunctional dual-radio W-Series IAP 108 (connecters for external antenna) and W-Series IAP 109 (four integrated antennas) are 802.11abgn, 2x2:2 MIMO access points with instant or remote AP modes for wireless and wired networking in large deployments. With 300Mbps wireless data rate per radio, each IAP features:
  • 10/100/1000BASE-T uplink port
  • 10/100BASE-T local port
  • USB port to connect to 3G and 4G networks
  • Desktop form factor with optional wall/ceiling-mount support
W-Series IAP104/105 Instant Access Points W-Series IAP104/105 Instant Access Points
W-Series IAP104 (external antenna) and W-Series IAP105 (internal antenna) are enterprise-grade dual-radio 802.11n indoor access points designed to deliver data rates of up to 300Mbps per radio, up to 600Mbps total for medium density deployments.
W-Series IAP103 Instant Access Points W-Series IAP103 Instant Access Points
W-Series I AP103 instant access points (IAPs) provide cost - effective dual-band coverage in medium-density enterprise WiFi environments while minimizing interference from cellular networks. These compact APs deliver wireless data rates up to 300Mbps per radio employing 802.11n technology with two spatial MIMO streams. The I AP103 features a 2.4-GHz and a 5-GHz radio, each with 2x2:2 MIMO and two integrated omnidirectional down-tilt antennas per radio.
W-Series IAP175 Outdoor Instant Access Points W-Series IAP175 Outdoor Instant Access Points
Enterprise-grade family of mainstream dual-radio 802.11n outdoor access points designed to deliver data rates of up to 300Mbps per radio, up to 600Mbps total. Ideal for campuses, industrial parks and other harsh, outdoor open-air environments, W-Series IAP175 instant access points can be powered via PoE, AC or DC power sources and include convenient wall and mast mounting options as well as a solar shield.

Enterprise-grade portable or desktop 802.11n indoor access points that offer data rates of up to 300Mbps.
W-Series IAP92/93 Instant Access Points W-Series IAP92/93 Instant Access Points
W-Series IAP92 (external antenna) and W-Series IAP93 (internal antenna) are entry-level, enterprise-grade, single-radio 802.11n indoor access points designed to deliver data rates of up to 300Mbps.
W-Series IAP3WN/IAP3WNP Wired + Wireless Instant Access Points  W-Series IAP3WN/IAP3WNP Wired + Wireless Instant Access Points
Enterprise-grade portable or desktop 802.11n indoor access points that offer data rates of up to 300Mbps.

W-Series IAP3WN features:
  • Two 10/100Mbps LAN ports
  • One 10/100/1000Mbps WAN port
  • One USB port to connect to external cellular modem
W-Series IAP3WNP has one PoE-capable LAN port that can be used to power an external PoE-enabled device, such as an IP phone.
W-Series IAP155/155P Wired + Wireless Instant Access Points

W-Series IAP155/155P Wired + Wireless Instant Access Points
Dual-band, dual-radio IAPs offering wire-like data rates of up to 450Mbps per radio with instant or remote AP-mode options. The IAP155 and IAP155P each have four ports available to the wired network and a USB port to connect to 3G and 4G networks. The W-Series IAP155P has two Power-over-Ethernet (PoE)-capable LAN ports that can be used to power an external PoE-enabled device, such as an IP phone.

  • Dual-radio, concurrent dual-band access points
  • 2x2 MIMO with two spatial streams and up to 300Mbps wireless data rate in 2.4GHz
  • 3x3 MIMO with three spatial streams and up to 450Mbps wireless data rate in 5GHz

Dell PowerConnect Instant Access Point (IAPs) eliminate the need for an external controller and make it easier to set up and manage enterprise-grade wireless LAN (WLAN) while delivering the affordability and simplicity of an entry-level Wi-Fi network.

Ease of deployment

Networking W-IAP is designed to be up and running in minutes. From a laptop, simply connect wirelessly to perform over-the-air provisioning in a few easy steps. To expand the network, simply add more Networking W-IAPs—configuration is automatically applied to the new IAPs.

Enterprise features

The Virtual Controller technology integrated within a Networking W-IAP delivers enterprise-grade capabilities such as AP auto discovery, 802.1x authentication, role-and device-based policy enforcement, rogue detection and Adaptive Radio Management (ARM) to optimize Wi-Fi client behavior.

Management and visibility

Networking W-IAP includes a built-in web interface to manage IAP based WLAN network. Multiple Networking W-IAP networks can be securely and centrally managed by Dell Networking W-Series AirWave Wireless Management Suite, allowing groups of W-IAPs to operate in hundreds of remote locations. With Dell Networking W-Series AirWave, IT has real-time visibility into users, mobile devices and wireless and wired network status from a single management console.

In addition, Dell also offers the OpenManage Network Manager 5.0 (OMNM 5.0) management software that is an easy-to-use, web-based management interface tool that can be customized. It delivers support for the full line of Dell Networking products, including Force10, PowerConnect, & W-Series wireless devices and offers enhanced features for Traffic flow analysis, Deployment, Monitoring, and Management. OMNM 5.0 comes with ten free licenses. Each local IAP based network, regardless of number of IAP’s in network, is considered as one, leaving customer up to 9 licenses to manage other devices.

Investment protection

As WLAN requirements expand, Networking W-IAP can be converted via firmware as an 802.11n campus AP and migrate to a centralized Mobility Controller architecture.

IAP vs. Controller based AP: Key High Level Differences
Features Instant Based Architecture Controller Based Architecture
Mobility and Roaming Mobility across Layer-2 network Mobility supported across Layer-2 and Layer-3 network
Scalability

Bounded by layer-2 network design best practices

Use AirWave to manage multiple IAP networks

Thousands of APs
Security Decrypts traffic at the IAP Decrypts traffic at the central controller for applications that require this
VPN Termination Capability No Yes, Controller can be a VPN concentrator/ termination point
FIPS, NSA Suite B support. May be required by US Government/ Military. No Yes

Product Comparison:

Legend: S —Standard AO — Available Optional N — Not Available

W-Series Instant Access Points High Performance Comparision Specs
  W-IAP108 /
W-IAP109
W-IAP114 /
W-IAP115
W-IAP134 /
W-IAP135
W-IAP 155 /
W-IAP 155P
W-IAP274 /
W-IAP275
W-IAP224 /
W-IAP225
Data rate 300Mbps 450 Mbps
3x3 MIMO
900Mbps (450Mbps each radio) 900 Mbps
3x3 MIMO
1.3 Gbps
3x3 MIMO
802.11ac
1.3 Gbps
3x3 MIMO
802.11ac
Radios Dual-radio, dual-band 802.11n indoor Dual radio, 5-GHz and 2.4-GHz 802.11n 3x3:3 Dual radios: Simultaneous operation in 2.4 and 5GHz band. (Concurrent operation of both radios in the same band is not supported.) Dual radio, dual-band 802.11n indoor Dual radio,  5GHz 802.11ac and 2.4GHz 802.11n outdoor Dual radio, 5GHz 802.11ac and 2.4GHz 802.11n indoor
Operating frequencies (Country-specific restrictions apply): 2.4 to 2.4835 GHz, 5.150 to 5.875 GHz 2.4000 GHz to 2.4835 GHz
5.150 to 5.250 GHz
5.250 to 5.350 GHz
5.470 to 5.725 GHz
5.725 to 5.850 GHz
2.4 to 2.5GHz, 5.150 to 5.950GHz with DFS support. 2.400 to 2.4835GHz
5.150 to 5.250GHz
5.250 to 5.350GHz
5.470 to 5.725GHz
5.725 to 5.850GHz
2.4000 GHz to 2.4835 GHz
5.150 to 5.250 GHz
5.250 to 5.350 GHz
5.470 to 5.725 GHz
5.725 to 5.875 GHz
2.4000 GHz to 2.4835 GHz
5.150 to 5.250 GHz
5.250 to 5.350 GHz
5.470 to 5.725 GHz
5.725 to 5.850 GHz
Antennas RAP-108: Two RP-SMA connectors for external dual-band antennas
RAP-109: Four integrated omni- directional antennas for 2x2 MIMO with maximum antenna gain of 5.0 dBi in both 2.4 and 5 GHz. Built-in antennas are optimized for vertical orientation
10/100/1000
BASE-T Ethernet network interface (RJ-45) Auto-sensing link speed and MDI/MDX 802.3az Energy Efficient Ethernet (EEE)
PoE-PD: 48 Vdc 802.3af PoE or 802.3at PoE+
W-AP134: three RP-SMA for external dual-band antennas
W-AP135: six internal omni-directional, dual-band
2.4GHz: Two internal omni-directional antennas for 2x2 MIMO with maximum antenna gain of 5.5dBi
5GHz: Three internal omni-directional antennas for 3x3 MIMO with maximum antenna gain of 5.0dBi
Antennas are optimized for vertical orientation of the device
IAP-274: Six N-type female connectors for external antennas
IAP-275: Six integrated omni-directional antennas for 3x3 MIMO with maximum antenna gain of 5 dBi in 2.4 GHz and 5 dBi in 5 GHz. Built-in antennas are optimized for horizontal mounted orientation of IAP-275.
IAP-224: Three RP-SMA connectors for external dual-band antennas
IAP-225: Six integrated down-tilt omni-directional antennas for 3x3 MIMO with maximum antenna gain of 3.5 dBi in 2.4 GHz and 4.5 dBi in 5 GHz.
Built-in antennas are optimized for horizontal ceiling mounted orientation of IAP-225
Network interfaces ENET0 (uplink): One 10/100/1000 Base-T Ethernet (RJ-45), auto-sensing link speed and MDI/MDX
ENET1 (local): One 10/100 Base-T Ethernet (RJ-45), auto-sensing link speed and MDI/MDX
DC power interface, accepts 1.7/4.0-mm center-positive circular plug with 9.5-mm length
USB 2.0 host interface (Type A connector)
Serial console interface (RJ-45, TTL levels)
Two 100/1000
Base-T Ethernet Auto- sensing MDI/MDX. Supports MACSec Encryption, 802.3az
ENET0 (uplink): One 10/100/1000
BASE-T Ethernet (RJ-45), auto-sensing link speed and MDI/MDX
ENET1-4 (local): Four 10/100/1000
BASE-T Ethernet (RJ-45), auto-sensing link speed and MDI/MDX
ENET1 & ENET2 capable of sourcing POE power
One PoE+ PD port 10/100/1000 BASE-T Ethernet network interface (RJ-45)
One port 10/100/1000 BASE-T Ethernet network interface (RJ-45)
Two 10/100/1000 BASE-T Ethernet network interfaces (RJ-45)
Auto-sensing link speed and MDI/MDX
Load balancing statement TBD
MACSec encryption and 802.3az EEE
Other interfaces One USB 2.0 port (Type A) connector
One serial console interface (RJ-45)
Power over Ethernet (PoE): 48 Vdc (nominal) 802.3af or 802.3at-compliant source Console interface (RJ45) DC power interface:
12V dc +/- 5%
Serial console interface (micro USB) DC power interface, accepts 1.7/4.0mm  center-positive circular plug with 9.5mm length
USB 2.0 port  (Type A connector)
Serial console interface (RJ45, TTL levels)
Power over Ethernet (PoE) interfaces 802.3af (PoE) or 802.3at (PoE+) on uplink Ethernet port Note: When using PoE, the USB port will be enabled only when an 802.3at-compliant source is used Power sources sold separately
Direct DC source: 12 Vdc nominal, +/- 5%
48V DC 802.3af or 802.3at or PoE+ interoperable with intellisource PSE sourcing intelligence (both ports) 802.3af or 802.3at power sourcing support (PSE) provided on two local Ethernet ports (ENET1, 2)
Device capable of supplying 1x full 802.3at power or 2x full 802.3af power
Power over Ethernet (PoE): 48 Vdc (nominal) 802.3at-compliant source POE-PD: 48 Vdc 802.3af POE or 802.3at POE+
Power interfaces One port for DC power connector (DC Input from AC power adapter or POE only) Maximum power consumption: 13 watts, plus up to 2.5 watts for attached USB device. 12V DC, 1.25A W-IAP155: 12Vdc from external AC-to-DC power adapter
W-IAP155P: 54Vdc from external AC-to-DC power adapter
AC power interface; power cords sold separately Direct DC source: 12 Vdc nominal,  +/- 5%
Power over Ethernet (POE):
48 Vdc (nominal) 802.3af or 802.3at compliant source
Power consumption Without USB device connected: 12.5 watt
With USB device: 15 watts
Indoor 15 Watts (maximum) Without USB device connected: 17.5 W
With USB device: 20 W
When sourcing POE power (W-IAP155P only),total power consumption may increase by up to 34W
23 watts 15W, plus up to 2.5W for attached
USB device.
Environmental Class Indoor Operating:
Temperature: 0° C to +50° C (+32° F to +122° F)
Humidity: 5% to 95% non-condensing
Indoor, plenum-rated Indoor Outdoor; Operating Altitude: 3000m; Chassis Rating: IP66 and IP67; Wind Survivability: Up to 165 mph; Shock and Vibration: ETSI 300-19-2-4 spec T41.E 4M3 Indoor
Operating temperature 0° C to 40°C (32°F to 104°F) 0°C to 50°C (32°F to 122°F) 0°C to 50°C (32°F to 122°F) 0° C to +40° C (+32° F to +104° F) -40° C to +65° C (-40° F to +150° F) 0° C to +50° C (+32° F to +122° F)
Humidity 5% to 95% non-condensing - - 5% to 95% non-condensing 5% to 95% non-condensing 5% to 95% non-condensing

Specifications:

Dell Networking W-IAP134/135 Instant Access Points

Operating mode

  • Multiservice concurrent 802.11a/n + b/g/n
  • Backward compatible with 802.11a/b/g and mixed mode 802.11a/b/g/n deployments
  • Air Monitor, Remote AP, Spectrum Monitor, Secure enterprise mesh

Radios

  • Multifunction, dual radio capable of 2.4-GHz and 5-GHz operation
  • Both 802.11n radios implement 3x3 MIMO with up to three spatial streams, providing up to 450Mbps data rate per radio
  • Maximum ratio combining (MRC) for improved receiver performance
  • Maximum transmit power per radio: 23dBm

Wireless radio specifications

  • AP type: Dual-radio, dual-band 802.11n indoor
  • Supported Frequency Bands (country-specific restrictions apply):
    • 2.400 - 2.4835 GHz
    • 5.150 - 5.250 GHz/5.250 - 5.350 GHz/5.470 - 5.725 GHz/5.725 - 5.850 GHz with Dynamic Frequency Selection (DFS) capability
  • Available Channels: Controller-managed, dependent upon configured regulatory domain Supported Radio Technologies:
    • 802.11b: Direct-sequence spread-spectrum (DSSS)
    • 802.11a/g/n: Orthogonal frequency division multiplexing (OFDM)
    • 802.11n: 3x3 MIMO with up to three spatial streams
  • Supported Modulation Types:
    • 802.11b: BPSK, QPSK, CCK
    • 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
  • Maximum Transmit Power (aggregated for three active transmit chains):
    • 2.4 GHz: up to 23 dBm (limited by local regulatory requirements)
    • 5 GHz: up to 23 dBm (limited by local regulatory requirements)
  • Association Rates (Mbps):
    • 802.11b: 1, 2, 5.5, 11
    • 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
    • 802.11n: MCS0—MCS23 (6.5 Mbps to 450 Mbps)
  • 802.11n High-Throughput (HT) Support: HT 20/40
  • 802.11n Packet Aggregation: A-MPDU, A-MSDU

Antenna

  • IAP-134: Three RP-SMA antenna interfaces for external dual-band antennas. External Antenna selection guide is available from Dell representative or downloadable from Dell.com/Wireless
  • IAP-135: Six internal downtilt omni-directional antennas; three per frequency band
    • 2.4 to 2.5 GHz/3.5 dBi
    • 5.150 to 5.875 GHz/4.5 dBi

Power

  • 48 V DC 802.3af PoE or 802.3at PoE+
  • 12 V DC external AC supplied power (adapter sold separately)
  • Maximum power consumption: 15 watts

Interfaces

  • Network:
    • 1 x 10/100/1000Base-T Ethernet (RJ45),auto-sensing, MDI/MDX
  • Power:
    • 1 x DC power connector
  • Other:
    • 1 x RJ45 console interfaceMounting
  • Standard:
    • Wall mounting using built-in mount features
    • Recessed ceiling-tile rail mounting using one of two adapters supplied with the AP (9/16” and 15/16” rails)

Mechanical

  • Dimensions/Weight:
    • 170 mm x 170 mm x 45 mm (6.69" x 6.69" x 1.77")
    • Unit: 760 g (1.68lb)

Environmental

  • Operating:
    • Temp: 0° C to +50° C (+32° F to +122° F)
    • Relative humidity: 5 to 95% non-condensing
  • Storage and Transportation Temperature Range:
    • Temp: -40° C to +70° C (-40° F to +158° F)

Certifications/Regulartory

  • Wi-Fi certified: 802.11a/b/g/n
    Product meets EMC, safety and wireless standards of over 50 countries inclusive of; USA (FCC), Canada, EU, Japan, Korea, China. For more country-specific regulatory information, and approvals, please see your Dell representative.

Minimum OS Version

  • 6.1.2.3 - 2.0.0.3

Extended Life Warranty*

Performance Table:

W-IAP135 RF Performance Table
  Max TX power per active TX chain (dBm) RX Sensitivity (dBm) Max TX power per active TX chain (dBm) RX Sensitivity (dBm)
  2.4 GHz 5 GHz
802.11b
1Mbps 18 -97 -- --
11Mbps 18 -92 -- --
802.11a/g
6 Mbps 18 -94 18 -94
54 Mbps 16 -81 16 -82
802.11n HT20
MCS0/8/16 17 -94 17 -94
MCS7/15/23 12 -78 12 -78
802.11n HT40
MCS0/8/16 17 -92 17 -92
MCS7/15/23 11 -75 11 -74

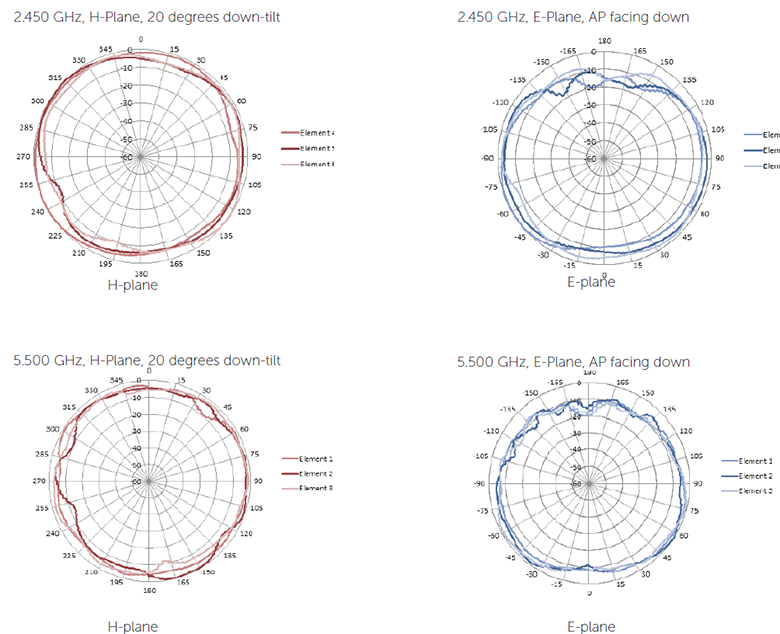

W-IAP135 Antenna Pattern Plots

W-IAP135 Antenna Pattern Plots

Pricing Notes:

Sorry, this product is no longer available, Please, contact us for a replacement product!
